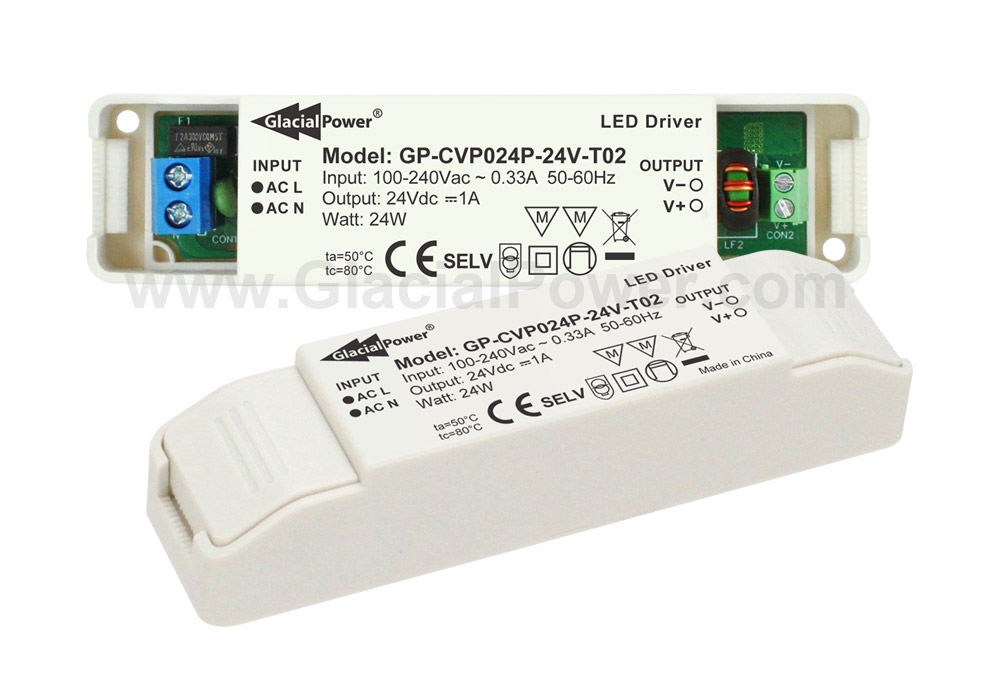

LED Driver - Plastic Housing / CV - Terminal Blocks
  GP-CVP Series (12W ~ 150W)

GP-CVP012N Series
Features
Universal AC Input Range 90 ~ 264VAC.
Class II Power Design without Earth Pin.
Constant Voltage Design. (CV Mode)
Fully isOlated Plastic Case.
Protections : OCP/ SCP.
No Load Consumption＜0.5W at 230VAC.
Output Loading
Model No. Output Voltage Rated Current Efficiency Dimension Watts Datasheet
GP-CVP012N-12V-T02 12V 0- 1000mA 81% 86 x 45 x 26mm 12W
GP-CVP012N-24V-T02 24V 0- 500mA 83% 86 x 45 x 26mm 12W
Safety Approval
GP-CVP036N Series
Features
Universal AC Input Range 90 ~ 264VAC.
Class II Power Design without Earth Pin.
Constant Voltage Design. (CV mode)
Fully Isolated Plastic Case.
Protections: OCP/SCP/OTP/OVP.
No Load Consumption＜0.5W at 230VAC.
Withstand 300VAC Surge Input for 5 seconds.
Output Loading
Model No. Output Voltage Rated Current Efficiency Dimension Watts Datasheet
GP-CVP036N-12V-T12 12V 0- 3A 83% 96 x 44.3 x 30mm 36W
GP-CVP036N-24V-T12 24V 0- 1.5A 85% 96 x 44.3 x 30mm 36W
Safety Approval
GP-CVP060P Series
Features
Universal AC Input Range 90 ~ 264VAC.
Constant Voltage mode.
Active PFC design.
Protections: OVP / OCP / SCP / OTP.
High Efficiency up to 89 %
Fully Insulated Plastic Case.
Meet application for ErP (EU) 2019/2020
No-load power consumption < 0.5W at 230VAC
Set up time < 0.5S at 230VAC.
Suitable for LED strips and Moving Sign applications.
Withstand 300VAC Surge Input for 5 Seconds.
Output Loading
Model No. Output Voltage Rated Current Efficiency Dimension Watts Datasheet
GP-CVP060P-12V-T02 12V 0- 5A 86.5% 175.7 x 45.9 x 30mm 60W
GP-CVP060P-24V-T02 24V 0- 2.5A 89% 175.7 x 45.9 x 30mm 60W
GP-CVP060P-36V-T02 36V 0- 1.66A 89% 175.7 x 45.9 x 30mm 60W
GP-CVP060P-48V-T02 48V 0- 1.25A 89% 175.7 x 45.9 x 30mm 60W
Safety Approval
GP-CVP100P Series
Features
Universal AC Input Range 90 ~ 264VAC.
Constant Voltage mode.
Active PFC design.
Protections: OVP / OCP / SCP / OTP.
High Efficiency up to 90 %
Fully Insulated Plastic Case.
Meet application for ErP (EU) 2019/2020
No-load power consumption < 0.5W at 230VAC
Set up time < 0.5S at 230VAC.
Suitable for LED strips and Moving Sign applications.
Withstand 300VAC Surge Input for 5 Seconds.
Output Loading
Model No. Output Voltage Rated Current Efficiency Dimension Watts Datasheet
GP-CVP100P-12V-T02 12V 0- 8.3A 88% 204 x 53.5 x 30mm 99.6W
GP-CVP100P-24V-T02 24V 0- 4.2A 90% 204 x 53.5 x 30mm 100.8W
GP-CVP100P-36V-T02 36V 0- 2.8A 90% 204 x 53.5 x 30mm 100.8W
GP-CVP100P-48V-T02 48V 0- 2.1A 90% 204 x 53.5 x 30mm 100.8W
Safety Approval
GP-CVP150P Series
Features
Universal AC Input Range 90 ~ 264VAC.
Constant Voltage mode.
Active PFC design.
Protections: OVP / OCP / SCP / OTP.
High Efficiency up to 91.5 %
Fully Insulated Plastic Case.
Meet application for ErP (EU) 2019/2020
No-load power consumption < 0.5W at 230VAC
Set up time < 0.5S at 230VAC.
Suitable for LED strips and Moving Sign applications.
Withstand 300VAC Surge Input for 5 Seconds.
(200 ~ 264VAC)
Model No. Output Voltage Rated Current Efficiency Dimension Watts Datasheet
GP-CVP150P-12V-T01 12V 0- 11A 89% 204 x 53.5 x 30mm 132W
GP-CVP150P-24V-T01 24V 0- 6.25A 91% 204 x 53.5 x 30mm 150W
GP-CVP150P-36V-T01 36V 0- 4.2A 91% 204 x 53.5 x 30mm 151.2W
GP-CVP150P-48V-T01 48V 0- 3.15A 91.5% 204 x 53.5 x 30mm 151.2W
(90 ~ 180VAC)
Model No. Output Voltage Rated Current Efficiency Dimension Watts Datasheet
GP-CVP150P-12V-T01 12V 0- 10A 89% 204 x 53.5 x 30mm 120W
GP-CVP150P-24V-T01 24V 0- 5A 91% 204 x 53.5 x 30mm 120W
GP-CVP150P-36V-T01 36V 0- 3.35A 91% 204 x 53.5 x 30mm 120.6W
GP-CVP150P-48V-T01 48V 0- 2.5A 91.5% 204 x 53.5 x 30mm

120W
Safety Approval
