High system efficacy up to 90 lm/W. Recessed, surface mount, ceiling mount, suspension cable, and Clip-on mounting options are all available. Elegant structure, slim and light design. 3 optional color temperatures and 3 sizes available. Optional dimming available. Ideal replacement for fluorescent tube lights or louver lights.
100-240V AC
Driver with CUL Certificate Supports 277V AC for North America only
Power Factor (PF)
0.96 at 120V AC, 0.91 at 240V AC
CCT (color)
3000K
4000K
6000K
Luminous Flux
3650 lm
3900 lm
3950 lm
System Efficacy
83 lm/W
89 lm/W
90 lm/W
CRI (Minimum)
80
80
80
Beam Angle
110°
IP Rating
IP40
Operation Temperature
-20°C ~ +40°C
Bundled Driver
HS60P-24CA1 (for 1-10V/PWM/Resistor)
Package
4 PCS / Carton
* All specifications apply to the fixture assembly as a whole.
Due to the slight variations in the testing environment such as differences in ambient temperature or test equipment calibration, specifications are statistical reference values and may not match the actual technical parameters of an individual product.

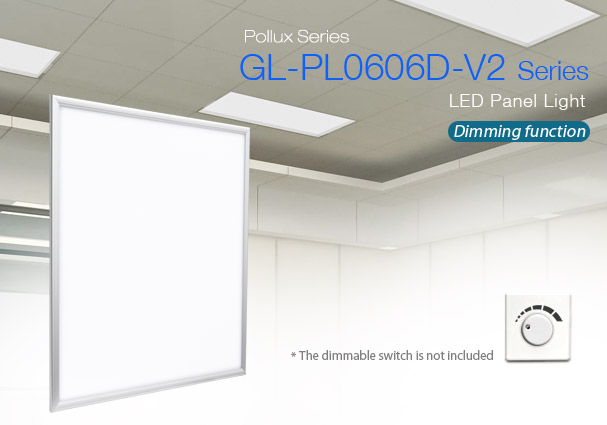

GL-PL0606-V2-WW / CCT :3000K
