| Features |
 High system efficacy up to 90 lm/W.
Recessed, surface mount, ceiling mount, suspension cable, and Clip-on mounting options are all available.
Elegant structure, slim and light design.
3 optional color temperatures and 3 sizes available.
Optional dimming available.
Ideal replacement for fluorescent tube lights or louver lights.
|
|
    |
| |
| Specifications |
| Type |
GL-PL0606-V2A-WW
GL-PL0606-V2B-WW
GL-PL0606-V2C-WW |
GL-PL0606-V2A-NW
GL-PL0606-V2B-NW
GL-PL0606-V2C-NW |
GL-PL0606-V2A-CW
GL-PL0606-V2b-CW
GL-PL0606-V2C-CW |
| Energy Used |
44W |
| Rated Life |
30,000 Hours |
| Input Voltage |
100-240V AC
Driver with CUL Certificate Supports 277V AC for North America only |
| Power Factor (PF) |
0.96 at 120V AC, 0.91 at 240V AC |
| CCT (color) |
3000K |
4000K |
6000K |
| Luminous Flux |
3650 lm |
3900 lm |
3950 lm |
| System Efficacy |
83 lm/W |
89 lm/W |
90 lm/W |
| CRI (Minimum) |
80 |
80 |
80 |
| Beam Angle |
110° |
| IP Rating |
IP40 |
| Operation Temperature |
-20°C ~ +40°C |
| Bundled Driver |
HS60P-24C1 |
| Package |
4 PCS / Carton |
|
* All specifications apply to the fixture assembly as a whole.
Due to the slight variations in the testing environment such as differences in ambient temperature or test equipment calibration, specifications are statistical reference values and may not match the actual technical parameters of an individual product. |
| |
 |
| |

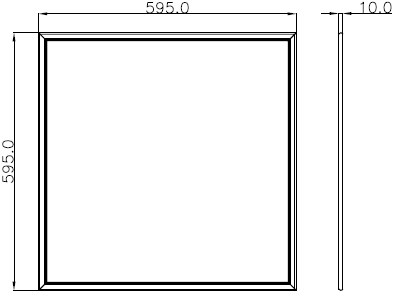

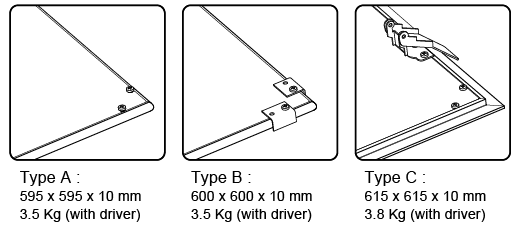

| Outline / Dimension |
|
| |

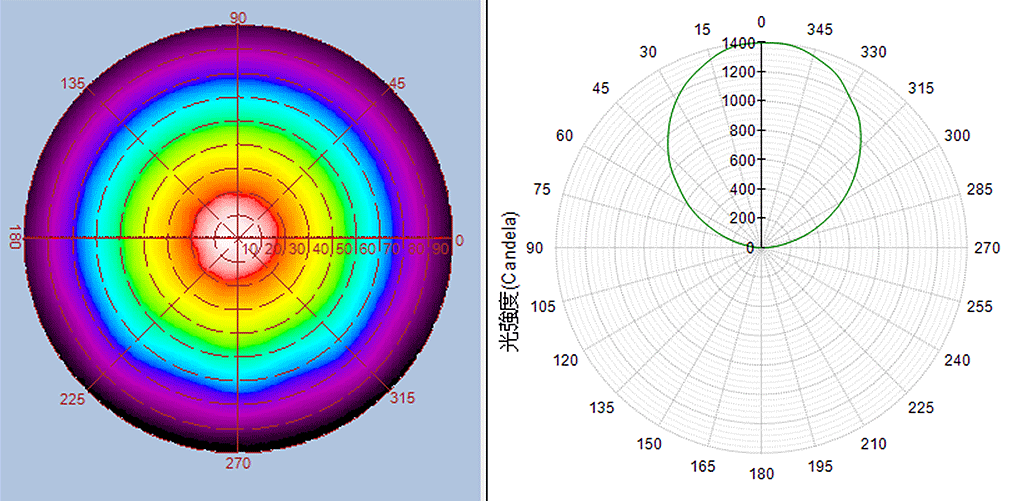

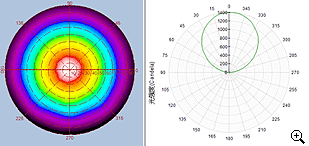

| Luminous Intensity Distribution Diagram |
| |

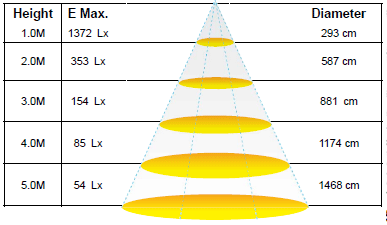

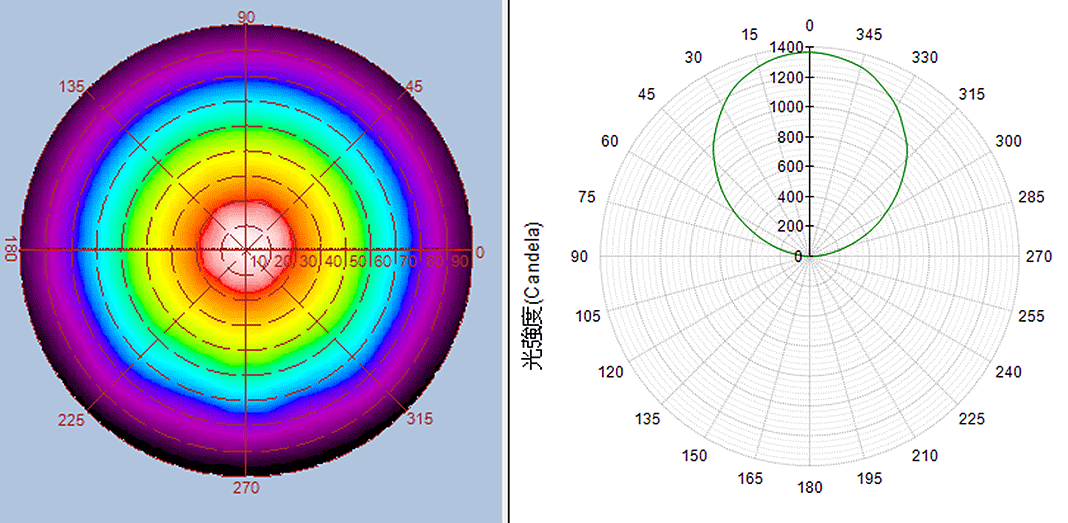

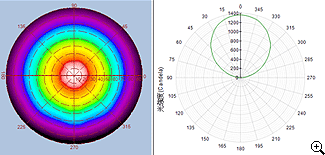

 GL-PL0606-V2-WW / CCT :3000K |
|
| |
 |
| |

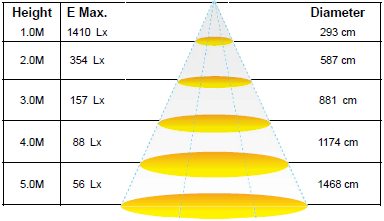

| GL-PL0606-V2-NW / CCT :4000K |
|
| |
 |
| |

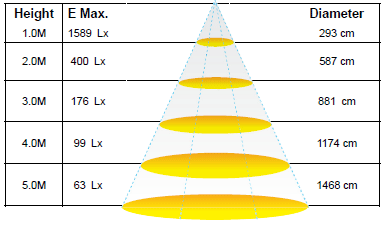

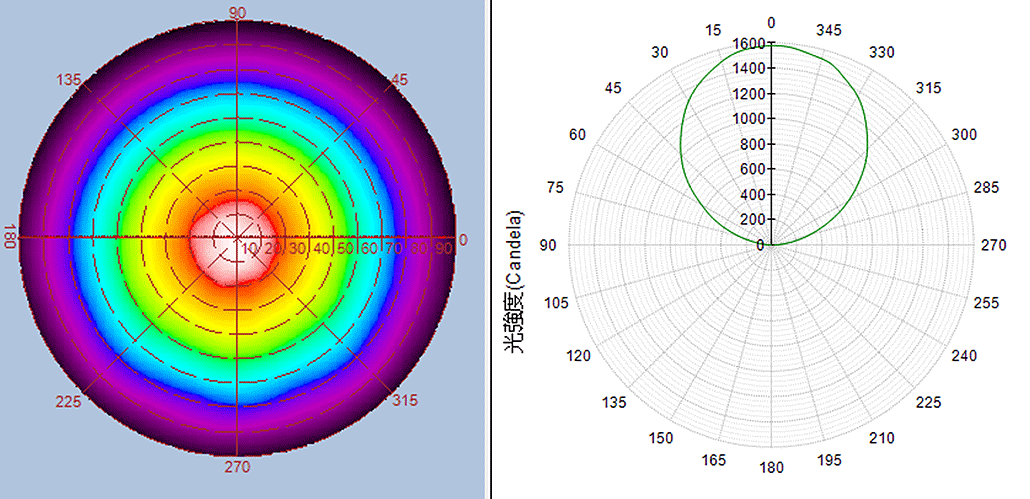

| GL-PL0606-V2-CW / CCT :6000K |
|
| |
 |
| |
| 5 methods of installation |
.jpg) |
| |
| |
|
