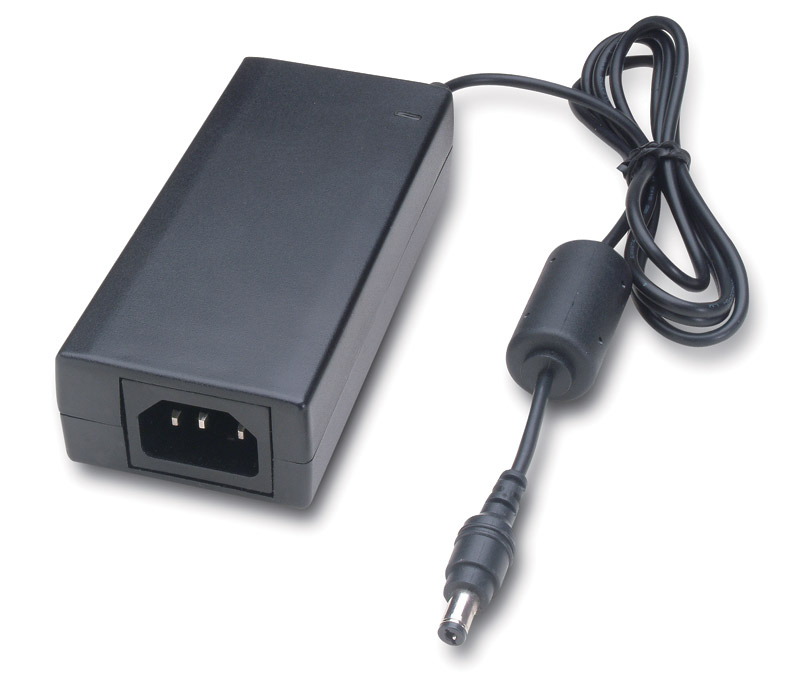

Discontinued Products/ Adaptor Power Supply   　Standard Type   AS60N Series AH065-OS SeriesAH090-OS SeriesAS60N Series       Input Voltage Range : 90 ~ 264V DC, 47 ~ 63 Hz, 1.7A Power Efficiency : Average >85%. Operating temperature range : -10 ~40°C at full load. Operating Humidity : 10 ~90%. Withstand Voltage: I/ P ~ O/ P:3KVAC, I/ P ~ FG:1.5KVAC Output Plug type : 2.1 x 5.5 x 9 mm, Inner+ Leakage Current : <3.5mA / 240VAC. MTBF : 100K hrs min.MIL-HDBK-217F(25°C ) Dimension : 117 × 53 × 30 mm   Output Loading (24W (AC Plug Type: US / UK / EU / AU) Model No. Output Voltage Rated Current Efficiency Tolerance Ripple & Noise Watts AS40N-12 12V 3.3A 80% ± 5% 200mVpp 40W AS50N-12 12V 4.16A 85% ± 5% 200mVpp 50W AS60N-12 12V 5A 85% ± 5% 200mVpp 60W AS60N-15 15V 4A 85% ± 5% 200mVpp 60W AS60N-19 19V 3.16A 85% ± 5% 200mVpp 60W AS60N-24 24V 2.5A 85% ± 5% 200mVpp 60W AS60N-30 30V 2A 85% ± 5% 200mVpp 60W   Safety Approval   TOP
