| Features |
 Universal AC / DC Input Combo design.
Compatible with most Notebooks.
8 sections of output Voltage selectable.
5V/1A USB port support for charging 3C device.
Protections: SCP / OVP / OCP/ OTP.
Built-in PFC function.
Convenience for travel Indoor/ in car/ on Airplane.
Convertible DC plug tips for choice.
Meet RoHS requirements and 2 year warranty. |
|
|
|
| Specification |
| AC Input Voltage Range : |
90~264VAC,47~63Hz, 2A. |
| DC Input Voltage Range: |
11-15VDC or 11-30VDC. |
| Power Efficiency : |
Average >88%. |
| Operating temperature range : |
0 ~40°C at full load. |
| Operating Humidity : |
5 ~95%. |
| Output Plug type : |
multiple DC plug tips for choice. |
| Leakage Current : |
< 250uA/240VAC. |
| MTBF : |
100K hrs min.MIL-HDBK-217F(25°C ) |
| Dimension : |
138.2 x 58.4 x 28.5 mm |
|
| |
| Safety Approval |
 |
| |
| Output Loading |
| 100 Watts ( AC Inlet with IEC320-C6 type) |
| MODEL:GP-AC100P-0S |
| |
DC Output Type (Selectable) |
USB |
| Output Voltage |
12 |
15 |
16 |
18.5 |
19 |
19.5 |
20 |
24 |
5V |
| Output Current |
5.5 |
5.5 |
5.5 |
5.15 |
5 |
4.9 |
4.75 |
4 |
1A |
| Input Voltage |
AC Input 90-264 Vac Non-DC Input function |
|
|
| |
| MODEL:GP-AC100P-0C |
| |
DC Output Type (Selectable) |
USB |
| Output Voltage |
15 |
16 |
18.5 |
19 |
19.5 |
20 |
20.5 |
24 |
5V |
| Output Current |
5.5 |
5.5 |
5.15 |
5 |
4.9 |
4.75 |
4.65 |
4 |
1A |
| Input Voltage |
AC input 90-264 Vac DC Input 11-15V |
|
|
| |

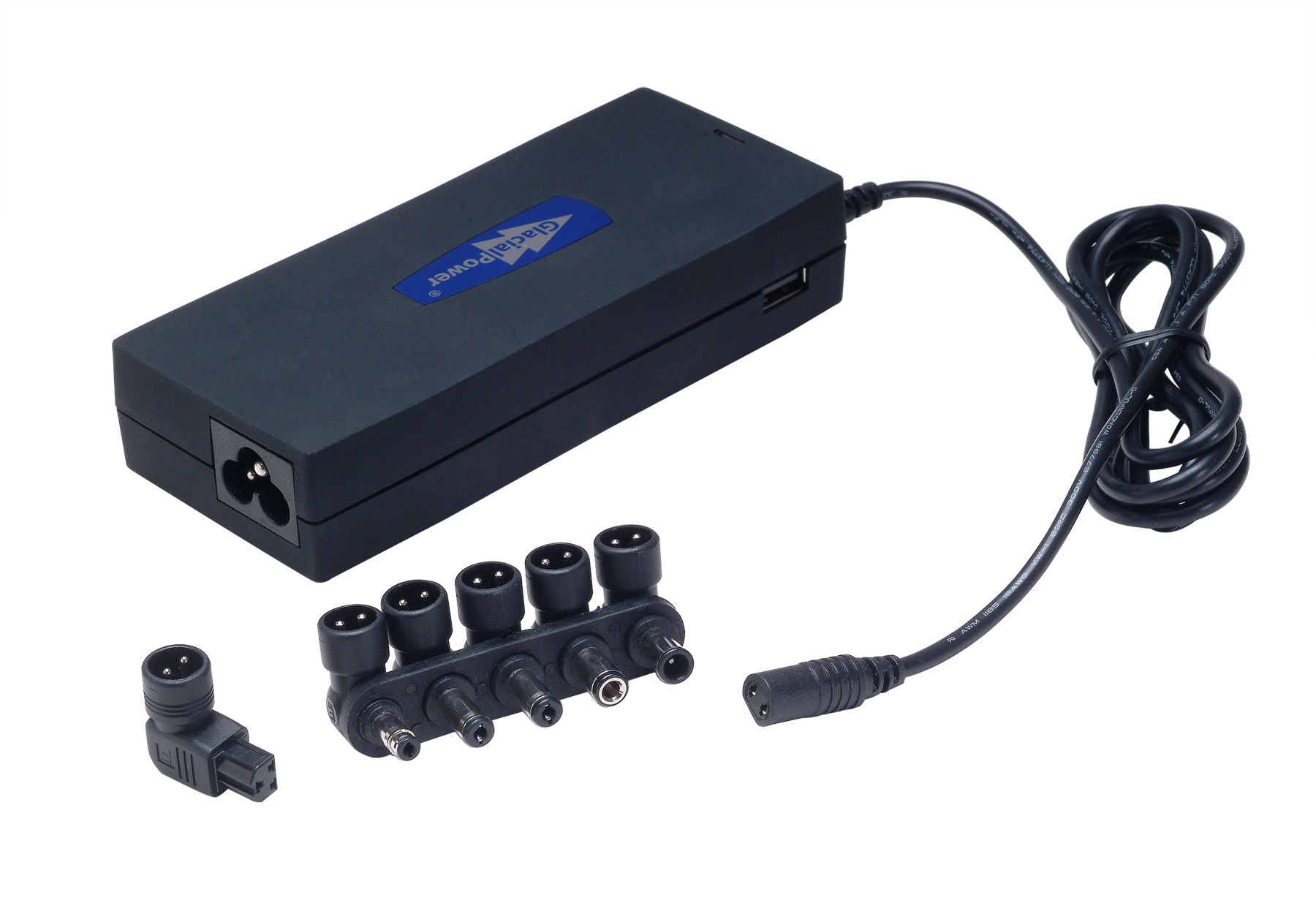

| Gallery |
|
| |
|
| |
|
| |
