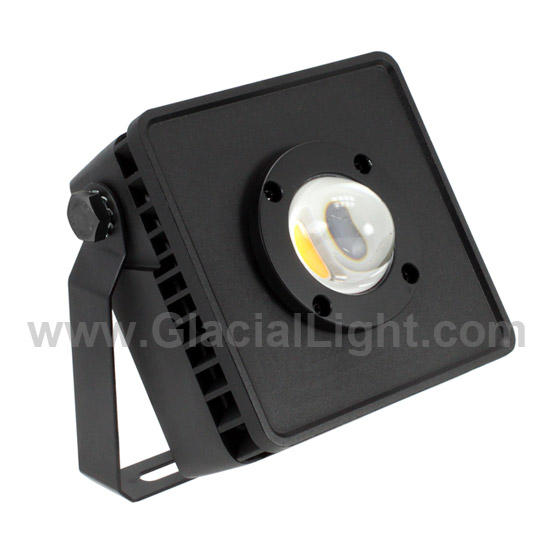

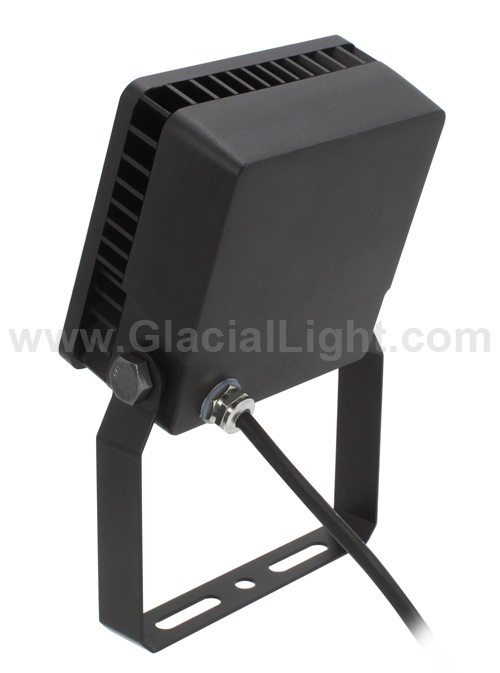

FL15 / FL35 SKD Solutions |
|
 LED Heat Sink Catalogue ｜  Thermal Design Inquiry |
 |
| |

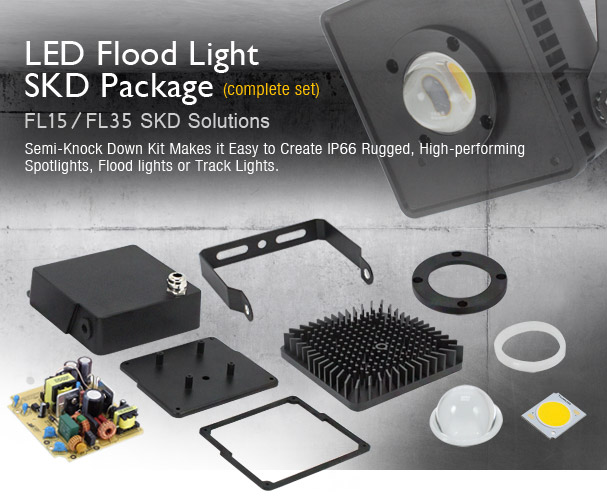

 Parts List |
|
HeatSink(2).jpg "LED Heatsink") |

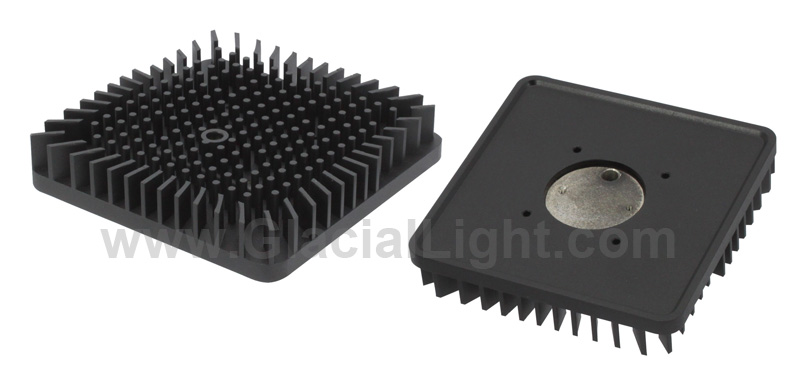

| FL15 & FL35 Heat Sink |
| Part No. |
29-FLXXS001 |
| External Dimension |
125 x 125 x 23.3 |
| Material |
AL1070 |
| Color |
Black |
| Surface Treatment |
Paint |
| Crafts |
Cold Forging |
| thermal resistance
(°C / W) |
1.912 |
| surface area (mm^2) |
80026 |
| Reference design power (w) |
15~30W |
| Net Weight |
375g |
|
|
| |
|
power-box(2).jpg "SKD Package Solutions") |

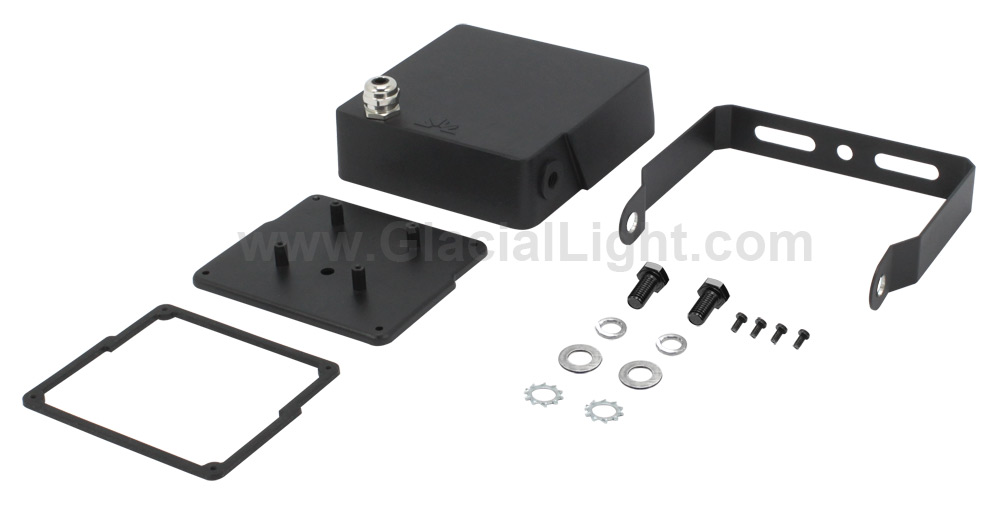

| FL15 Power Box |
| Part No. |
8E-FL158001 |
| External Dimension |
125 x 125x 38mm |
| Material |
Die Casting + SUS201 |
| IP Rating |
IP65 |
| Contents |
M3x8 Screws x4 /
Cover x1
Waterproof Rubber x1 /
Case x1
Bracket x1 /
Cable Glands x1
M8 Hex Screws x2
M8 Spring Washers x2
M8 Flat Washers x2
M8 Serrated Washers x2
Power Bulkhead x1
|
| Packing |
20 pcs in one carton |
| Net Weight |
450g |
|
|
| |
|
|
| FD15 & FL35 Power Box |
| Part No. |
8E-FL358001 |
| External Dimension |
125 x 125x 38mm |
| Material |
Die Casting + SUS201 |
| IP Rating |
IP65 |
| Contents |
M3x8 Screws x4 /
Cover x1
Waterproof Rubber x1 /
Case x1
Bracket x1 /
Cable Glands x1
M8 Hex Screws x2
M8 Spring Washers x2
M8 Flat Washers x2
M8 Serrated Washers x2
|
| Packing |
20 pcs in one carton |
| Net Weight |
430g |
|
|
| |
|
Optical-Kit(2).jpg "SKD Package Solutions") |

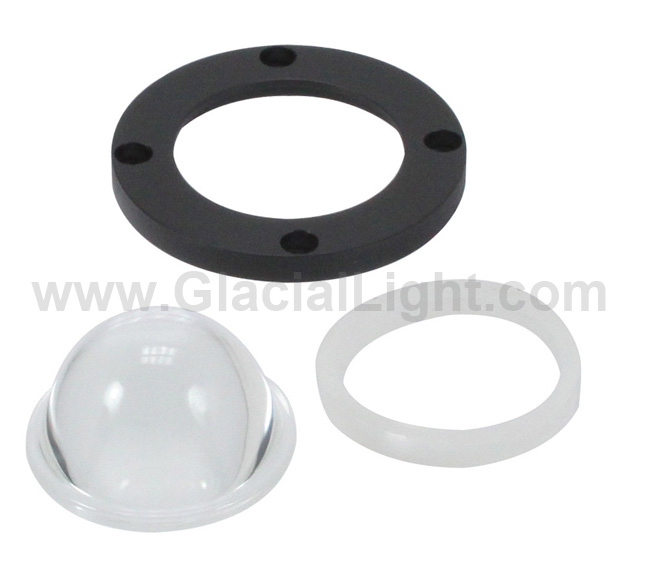

| Optical Kit (60D) |
| Part No. |
8E-BLFL8007 |
| External Dimension |
Φ50x 23mm |
| Material |
AL6061+Glass |
| IP Rating |
IP65 |
| Contents |
Aluminum Ring x1
Glass Lens(60D) x1
Waterproof Rubber x1 |
| Packing |
20 pcs in one carton |
| Net Weight |
95g |
|
|
| |
|
.jpg) |

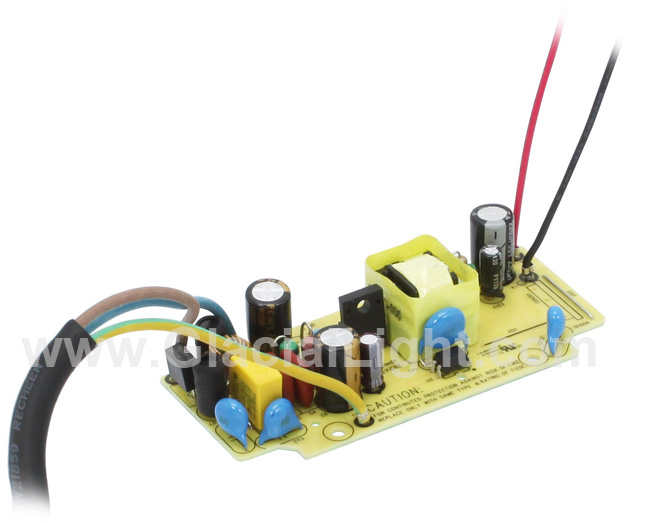

| GP-FL15-42C |
| Part No. |
8P-FL15C001 |
| Input |
Voltage Range (VAC) |
100-240V |
| Frequency Range |
47 Hz ~ 63 Hz |
| AC Current (Max.) |
0.25A@120VAC / 0.1A@240VAC |
| Output |
DC Voltage Range |
26-42V |
| Rated Current Range |
350mA |
| Rated Max. Power |
14.7W |
| Efficiency |
81% |
| Current Tolerance |
±5% |
| Others |
Dimension(L x W x H) |
95*42.5*25mm |
|
|
| |
|
.jpg) |

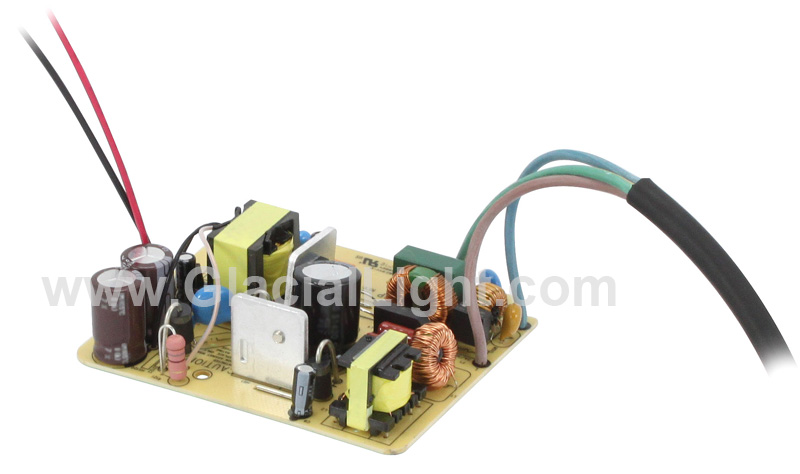

| GP-FL35-42C |
| Part No. |
8P-FL35C001 |
| Input |
Voltage Range (VAC) |
100-240V |
| Frequency Range |
47 Hz ~ 63 Hz |
| AC Current (Max.) |
0.5A@120VAC / 0.3A@240VAC |
| Output |
DC Voltage Range |
33-42V |
| Rated Current Range |
800mA |
| Rated Max. Power |
33.6W |
| Efficiency |
82% |
| Current Tolerance |
±5% |
| Others |
Dimension(L x W x H) |
89*78.5*33mm |
|
|
| |
|
.jpg) |

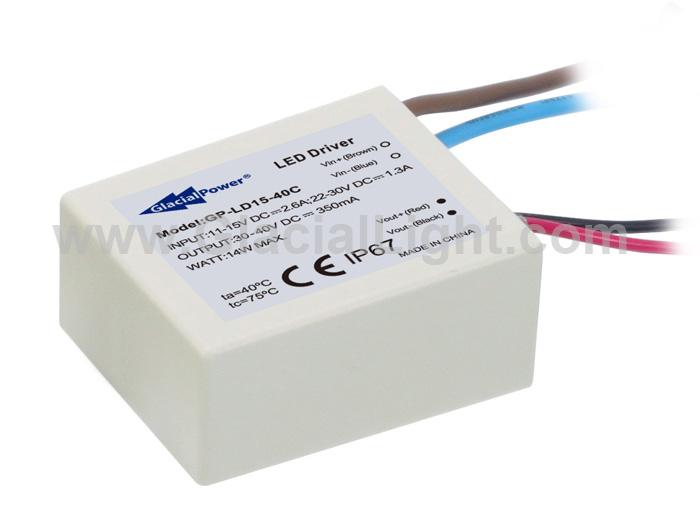

| GP-LD15-40C |
| Part No. |
8P-FD15C001 |
| Input |
Voltage Range (VDC) |
11-15VDC / 22-30VDC |
| DC Current (Max.) |
2.6A@11VDC / 1.3A@22VDC |
| Efficiency (TYP.) |
>84% at 12/24 VDC |
| Output |
LED Operation Voltage |
30-40V |
| DC Output Current |
350mA |
| Rated Max. Power |
14.0W |
| Current Tolerance |
±10% |
| Others |
Dimension(L x W x H) |
57 x 40.8 x 24mm |
|
|
| |

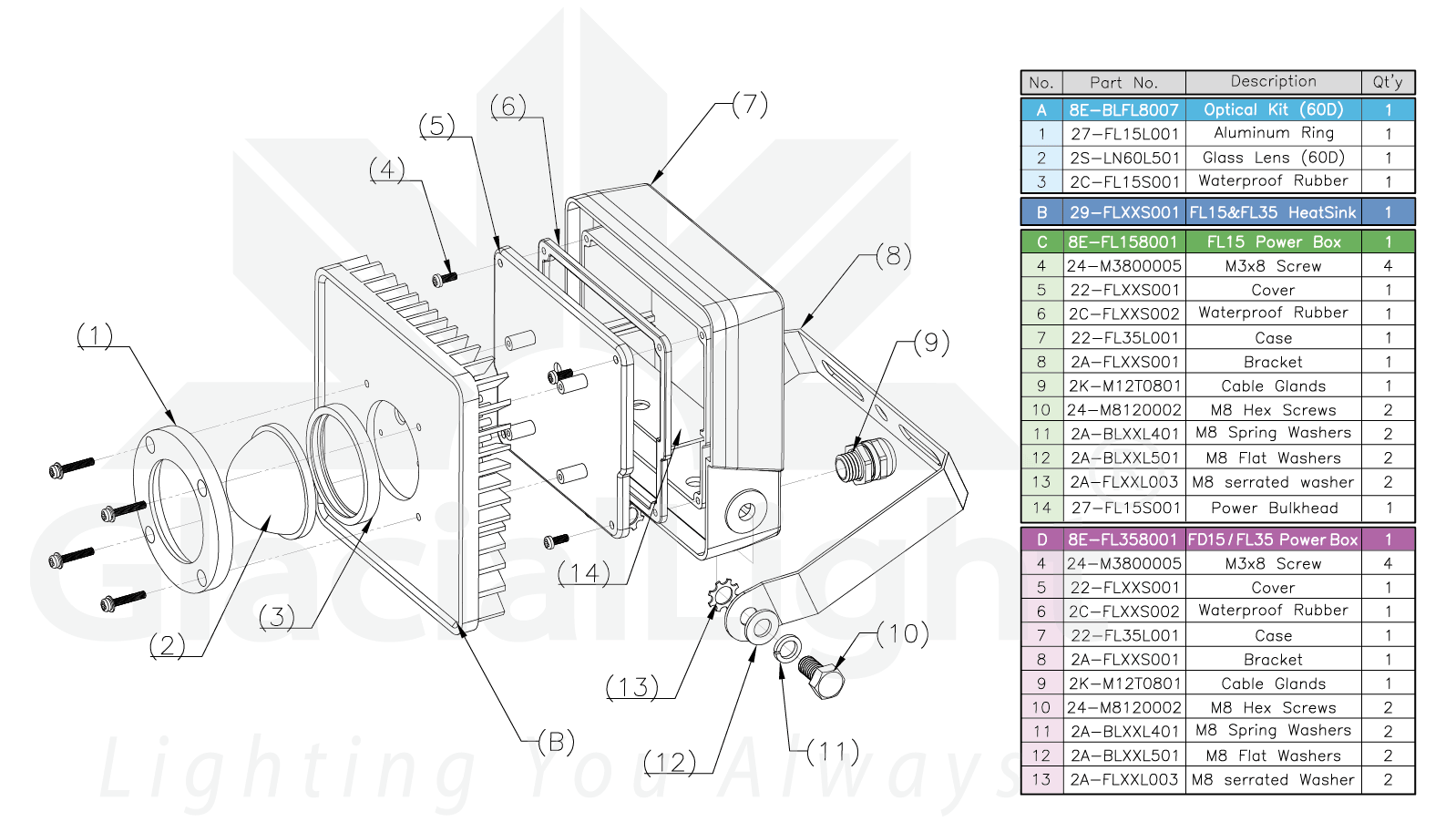

| Exploded View & Miscellaneous Parts |
Exploded-view(2).gif "Exploded View & Miscellaneous Parts") |
| |
| |
For more information, please visit at :
http://www.glaciallight.com/news/news_Igloo-FS125S-30W-Knock-Down-Kit.htm |
| |
