 Low power usage - 44.5 W.
Recessed, surface mount, ceiling mount, suspension cable, and clip-on mounting options.
Elegant look fits in any environment.
Light and slim 10mm design.
3 color temperatures (3000K, 4000K, 6000K) and 2 sizes available.
Dimming option available (1-10V DC/PWM/Resistor)
Ideal replacement for fluorescent tube lights or louver lights.
LED driver has a two-stage design and is IP67 and CUL certified.
|
|
    |
| |
| Specifications |
| Type |
GL-PL0312-V2A-WW
GL-PL0312-V2B-WW
GL-PL0312-V2C-WW
|
GL-PL0312-V2A-NW
GL-PL0312-V2B-NW
GL-PL0312-V2C-NW
|
GL-PL0312-V2A-CW
GL-PL0312-V2B-CW
GL-PL0312-V2C-CW |
| Energy Used |
44.5 W |
| Rated Life |
30,000 Hours |
| Input Voltage |
100-240V AC
Driver with CUL Certificate Support 277V AC for North America only |
| Power Factor (PF) |
0.96 at 120V AC, 0.91 at 240V AC |
| CCT (color) |
3000K |
4000K |
6000K |
| Luminous Flux |
3600 lm |
3700 lm |
3900 lm |
| System Efficacy |
81 lm/W |
83 lm/W |
88 lm/W |
| CRI (Minimum) |
80 |
80 |
80 |
| Beam Angle |
110° |
| IP Rating |
IP40 |
| Operation Temperature |
-20°C ~ +40°C |
| Bundled Driver |
GP-HS60P-24C1
(Driver Output : Constant Current 2200mA, 16~24V) |
| Package |
4 PCS / Carton |
|
* All specifications apply to the fixture assembly as a whole.
Due to the slight variations in the testing environment such as differences in ambient temperature or test equipment calibration, specifications are statistical reference values and may not match the actual technical parameters of an individual product. |
| |
 |
| |

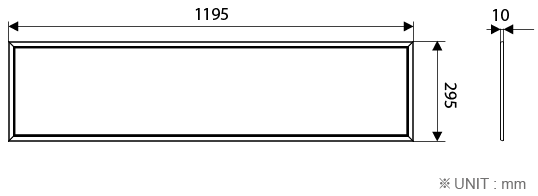

| Outline / Dimension |
|
| |
| Luminous Intensity Distribution Diagram |
| |

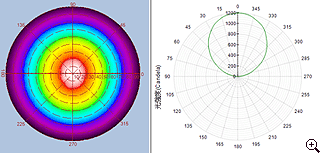

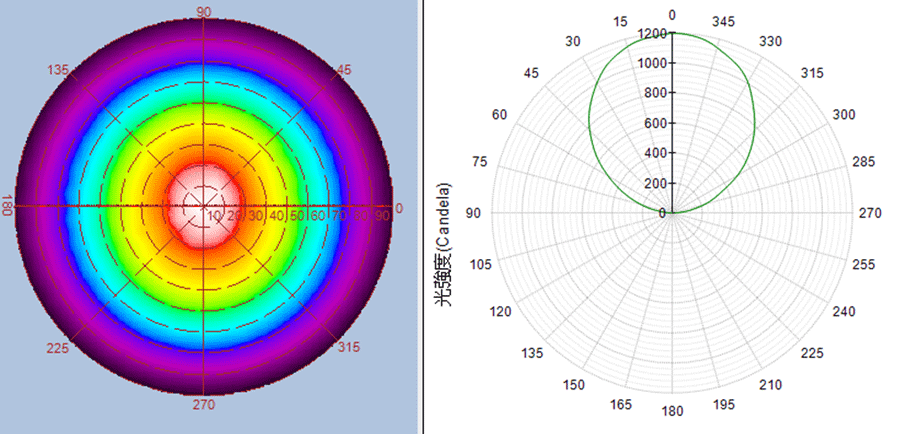

 GL-PL0312-V2-WW / CCT :3000K |
|
| |
 |
| |

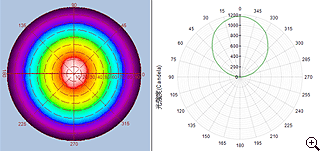

| GL-PL0312-V2-NW / CCT :4000K |
|
| |
 |
| |

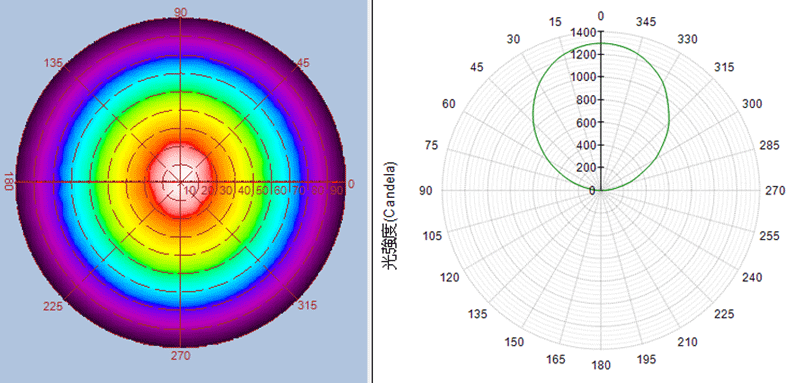

| GL-PL0312-V2-CW / CCT :6000K |
|
| |
 |
| |
|
