Products / LED Luminaires / Flood Light / FL150 Series
Download

Features
High system efficacy up to 111 lm/W.
Stainless steel outdoor-ready mounting bracket features 360 degrees of adjustment vertically.
Corrosion-resistant aluminum Outdoor Stake Light Bracket.
60 degree and 120 degree beam angle available.
IP66 rated rugged for outdoor use.
Wide operating temperature range from -40°C to +50°C.
Optical lens use with high temperature, high strength, high hardness and high transmittance of
     borosilicate glass. (hard glass)

Specifications
Type GL-FL150-WW GL-FL150-NW GL-FL150-CW
Energy Used 147W
Rated Life 30,000 Hours
Input Voltage 100-240V AC
Power Factor (PF) 0.98 at 120V AC, 0.94 at 240V AC
CCT (color) 3000K 4000K 5000K
Luminous Flux 14700 lm (60°/ 80°) 15800 lm (60°/ 80°) 16200 lm (60°/ 80°)
14800 lm (120°) 15900 lm (120°) 16300 lm (120°)
System Efficacy 100 lm/W (60°/ 80°) 107 lm/W (60°/ 80°) 110 lm/W (60°/ 80°)
101 lm/W (120°) 108 lm/W (120°) 111 lm/W (120°)
CRI (Minimum) 80
Beam Angle 60° / 80° / 120°
Dimension 286 x 229 x 248 mm
IP Rating IP66
Operation Temperature –40°C ~ +50°C *(Note 1)
Bundled Driver GP-LS150P-60
(Driver Output : Constant Current 2.5AĦA60V)
Net Weight 5.25 kg
Package 1 Carton
*Note 1: –40°C~ –20°C (Only support for 200~240V AC Input Voltage)

* All specifications apply to the fixture assembly as a whole.
Due to the slight variations in the testing environment such as differences in ambient temperature or test equipment calibration, specifications are statistical reference values and may not match the actual technical parameters of an individual product.


Outline / Dimension

CAUTIONS

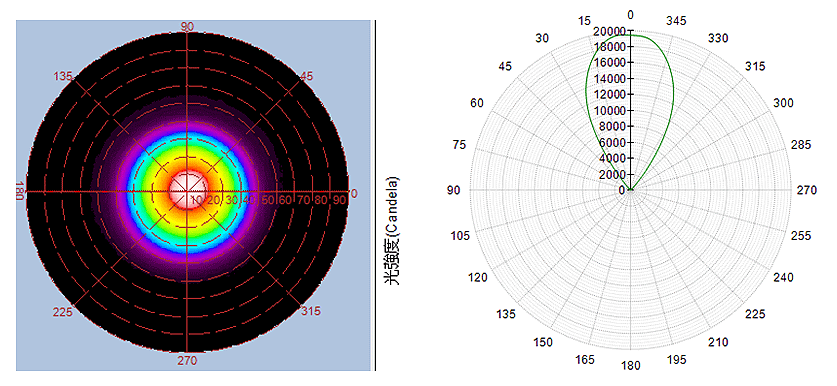

Luminous Intensity Distribution Diagram
GL-FL150-WW-60D / CCT : 3000K


GL-FL150-NW-60D / CCT : 4000K


GL-FL150-CW-60D / CCT : 5000K



360 Degrees Rotation
