 Highly efficient Metal-Halide replacement at 111 lm/W.
Stainless Steel Outdoor-ready Mount features 360 degree s of vertical adjustment.
10,000 lumen output for powerful outdoor lighting.
CCT: 3000K, 4000K and 5000K available. 70 and 120 degree beam angle.
IP66 rated rugged for outdoor use with waterproof power connector.
Wide operating temperature range from -40°C to +50°C.
Optical lens use with high temperature, high strength, high hardness and high transmittance of
borosilicate glass (hard glass) . |
     |
| |
| Specifications |
| Type |
GL-FL100-WW |
GL-FL100-NW |
GL-FL100-CW |
| Energy Used |
96W |
| Rated Life |
30,000 Hours |
| Input Voltage |
100-240V AC
Driver with CUL Certificate Support 277V AC for North America only |
| Power Factor (PF) |
0.98 at 120V AC, 0.97 at 240V AC |
| CCT (color) |
3000K |
4000K |
5000K |
| Luminous Flux |
10000 lm |
10500 lm |
10700 lm |
| System Efficacy |
104 lm/W |
109 lm/W |
111 lm/W |
| CRI (Minimum) |
80 |
80 |
80 |
| Beam Angle |
70° / 120° |
| Dimension |
283 x 160 x 248 mm |
| IP Rating |
IP66 |
| Operation Temperature |
-40°C ~ +50°C *(Note 1) |
| Net Weight |
4 kg |
| Package |
1 Carton |
| *Note 1 : –40°C (Only Support for 200~240V AC Input Voltage) |
|
* All specifications apply to the fixture assembly as a whole.
Due to the slight variations in the testing environment such as differences in ambient temperature or test equipment calibration, specifications are statistical reference values and may not match the actual technical parameters of an individual product. |
| |
 |
| |
| Outline / Dimension |
 |
| |
| CAUTIONS |
 |
| |
| |

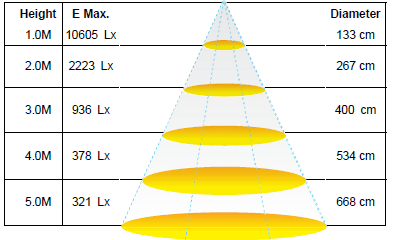

| Luminous Intensity Distribution Diagram |
 GL-FL100-WW-70D / CCT : 3000K |
|
| |
 |
| |
| GL-FL100-NW-70D / CCT : 4000K |
|
| |
 |
| |
| GL-FL100-CW-70D / CCT : 5000K |
|
| |
 |
 |
| |
| 360 Degrees Rotation |
| |
|
|
| |
