| Features |
 For indoor use only |
| Power conversion efficiency > 80% |
| Eco-friendly: RoHS Compliant, No UV, no IR, & no mercury |
| Low power consumption – energy-saving green product |
| Slim, compact and fashionable design |
| Bundled driver with PFC and OTP/SCP functions |
| 2 Years Warranty |
| Passed IEC 60598-1(2008 )、IEC 60695-2-11 850°C glow wire test (optional ) |
|
    |
| |
| Specifications |
| Type |
GL-DL06-WW |
GL-DL06-NW |
GL-DL06-CW |
| Energy Used |
10.9 W |
| Rated Life |
30,000 Hours |
| Input Voltage |
100-240V AC
(
Driver with cUL Certificate) |
| Power Factor (PF) |
0.88 at 120V AC, 0.8 at 240V AC |
| CCT(color) |
3000K |
4000K |
6000K |
| Luminous Flux |
900 lm |
920 lm |
980 lm |
| System Efficacy |
83 lm/W |
84 lm/W |
90 lm/W |
| CRI (Minimum) |
80 |
80 |
80 |
| Beam Angle |
110° |
| Dimension |
Ф180 x 13 mm |
| IP Rating |
IP50 |
| Operation Temperature |
-20°C ~ +40°C |
| Net. Weight |
450 g (with driver) |
| Package |
10 Boxes / Carton |
| Fixture Hole |
Ф 165 mm |

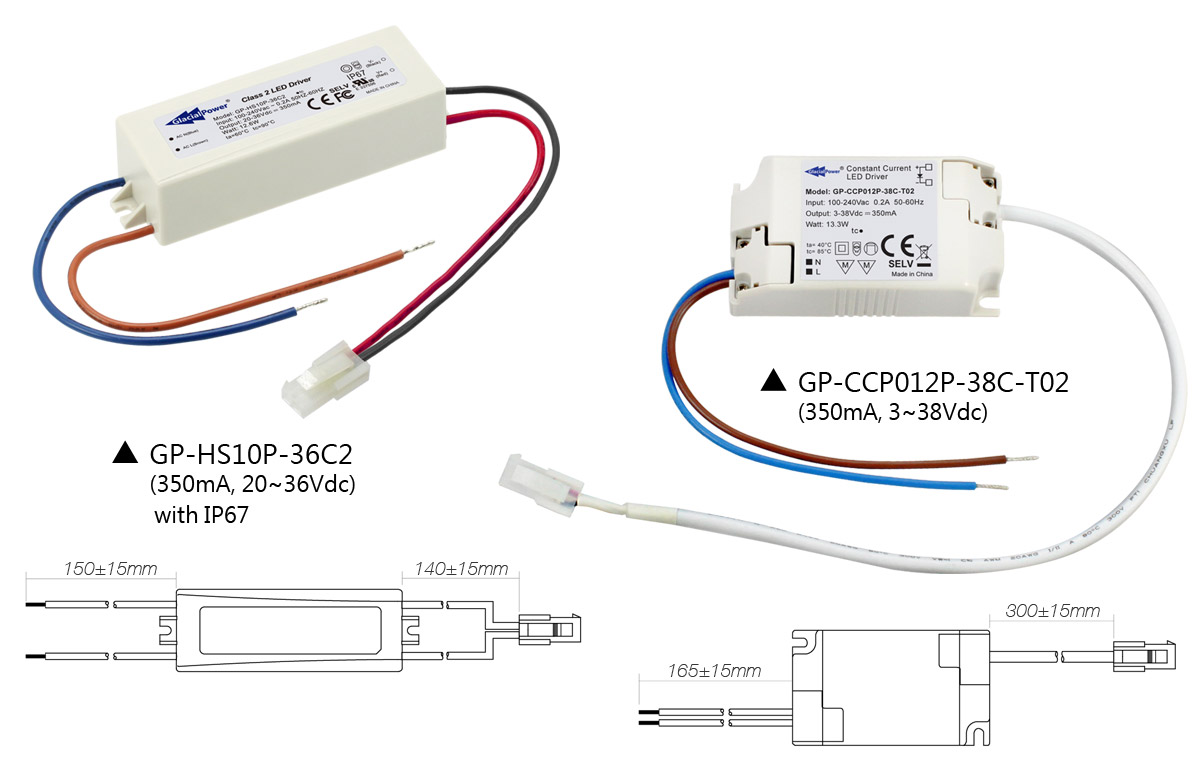

| Bundled Driver |
GP-HS10P-36C2 (350mA, 20~36Vdc),
GP-CCP012P-38C-T02 (350mA, 3~38Vdc) |
 |
|
* All specifications apply to the fixture assembly as a whole.
Due to the slight variations in the testing environment such as differences in ambient temperature or test equipment calibration, specifications are statistical reference values and may not match the actual technical parameters of an individual product. |
| |
| Outline / Dimension |
|
| |
| Luminous Intensity Distribution Diagram |
 GL-DL06-WW / CCT : 3000K |
|
| |
 |
| |
| |
| GL-DL06-NW / CCT : 4000K |
|
| |
 |
| |
| |
| GL-DL06-CW / CCT : 6000K |
|
| |
 |
| |
| |
| GL-DL06 Downlight Competitor Optical Comparison Table |
| Item |
Picture |
|
Manufacturer |
Model Name |
Luminous
Flux (lm) |
Efficacy
(lm/W) |
CCT |
CRI |
Beam
Angle |
Illuminance(lux) |
V AC-
IN (V) |
I IN (A) |
P(W) |
| 1m |
2m |
| 1 |
 |
|
GlacialLight |
GL-DL06
Downlight 6 inch |
980 lm |
90 |
6000K |
80 |
110 |
366 |
86 |
110V |
0.109A |
10.9 |
| 2 |
 |
|
XXX電 |
PA2XXX |
610 lm |
50.4 |
6900K |
61.3 |
106.9 |
224 |
56 |
110V |
0.11A |
12.1 |
| 3 |
 |
 |
15cm Open Type E27 Dip Down Light White Color Shell |
Open Type Dip Down Light
Fixture + Wellypower's
CCFL + Spiral-shaped bulbs |
641.2 lm |
36.2 |
6462K |
81.1 |
- |
164 |
46 |
110V |
0.273A |
17.7 |
| 4 |
|
 |
15cm Open Type E27 Dip Down Light White Color Shell |
Open Type Dip Down Light
Fixture + Wellypower's
CCFL + Spiral-shaped bulbs |
689.4 lm |
37.9 |
6866K |
78.7 |
- |
310 |
88 |
110V |
0.295A |
18.2 |
| 5 |
 |
|
15cm Plug Type E27 Horizontal Down Light White Color Shell |
Plug Type Horizontal Down
Light Fixture + Wellypower's
CCFL + Spiral-shaped bulbs |
450.4lm |
25.0 |
6981K |
80.3 |
- |
192 |
52 |
110V |
0.27A |
18.0 |
| 6 |
|
|
15cm Plug Type E27 Horizontal Down Light White Color Shell |
Plug Type Horizontal
Down Light Fixture +
wellypower's CCFL +
Spiral-shaped bulbs |
534.8lm |
27.7 |
6818K |
78.4 |
- |
274 |
74 |
110V |
0.311A |
19.3 |
|
| |
|
| |
