| Features |

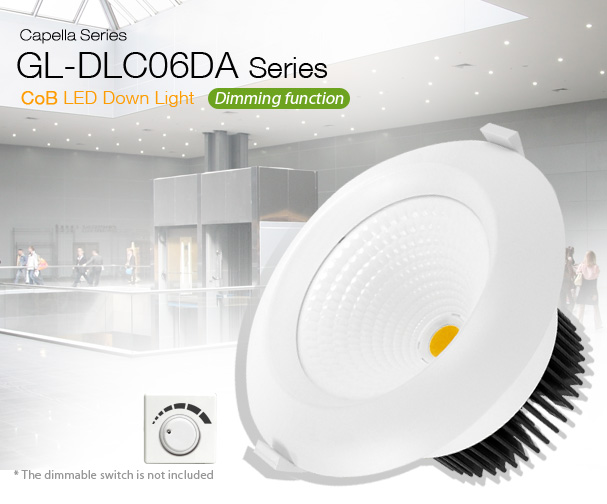

 6” recessed CoB down light
Comes in 35W(3500lm-3800lm)
3-in-1 dimmable (0-10V/PWM/Resistor) options
100+Lumen/W lighting performance
New DC power plug design simplifies installation
Cold forged heatsink is small yet achieves strong thermal performance
3 Color temperatures: 3000K Warm White, 4000K Neutral White, 5000K Cool White |
|
   |
| |
| Specifications |
| Type |
GL-DLC06DA-35-WW |
GL-DLC06DA-35-NW |
GL-DLC06DA-35-CW |
| Energy Used |
35W |
| Rated Life |
30,000 Hours |
| Input Voltage |
100-240V AC
(Driver with CUL Certificate Support 277V AC for North America only) |
| Power Factor (PF) |
0.98 at 120V AC, 0.94 at 240V AC without dimmer |
| CCT (color) |
3000K |
4000K |
5000K |
| Luminous Flux |
3500 lm |
3700 lm |
3800 lm |
| System Efficacy |
100 lm/W |
106 lm/W |
109 lm/W |
| CRI (Minimum) |
80 |
80 |
80 |
| Beam Angle |
90° (Reflector) |
| Dimension |
Ø 175 x 100mm |
| IP Rating |
IP40 |
| Operation Temperature |
-20°C ~ +40°C |
| Bundled Driver |
GP-RS35P-42CA (Dimmable) |
| Net Weight |
1050 g (with driver) |
| Package |
8 Boxes / Carton |
|
* All specifications apply to the fixture assembly as a whole.
Due to the slight variations in the testing environment such as differences in ambient temperature or test equipment calibration, specifications are statistical reference values and may not match the actual technical parameters of an individual product. |
| |
| Outline / Dimension |
 |
| |
| Luminous Intensity Distribution Diagram |

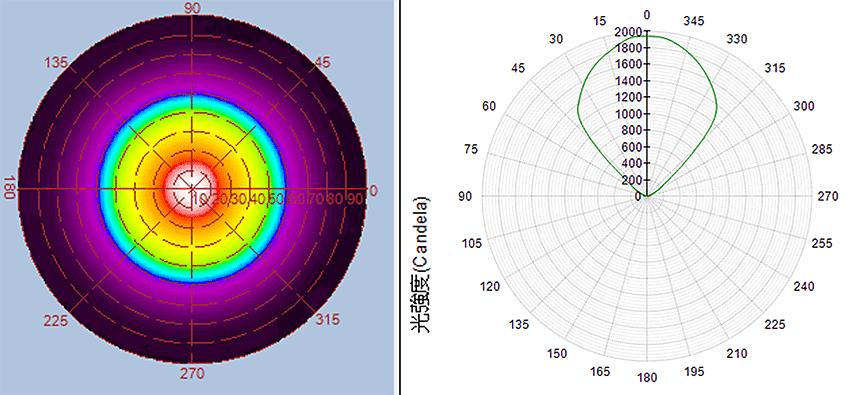

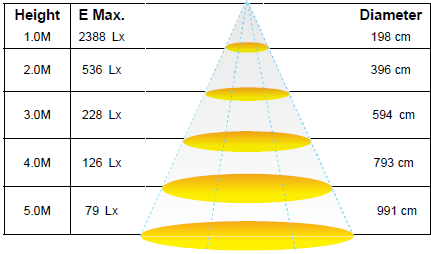

 GL-DLC06-35-WW / CCT : 3000K |
|
| |
 |
| |
| |

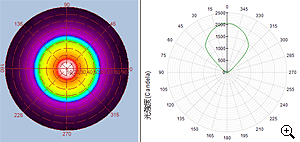

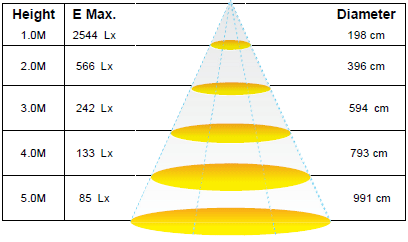

| GL-DLC06-35-NW / CCT : 4000K |
|
| |
 |
| |
| |

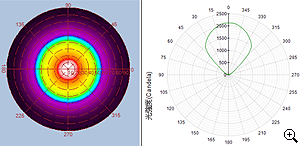

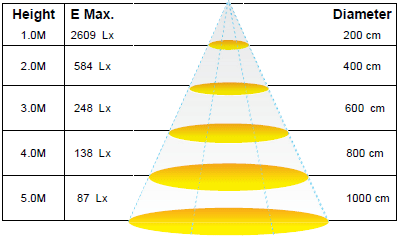

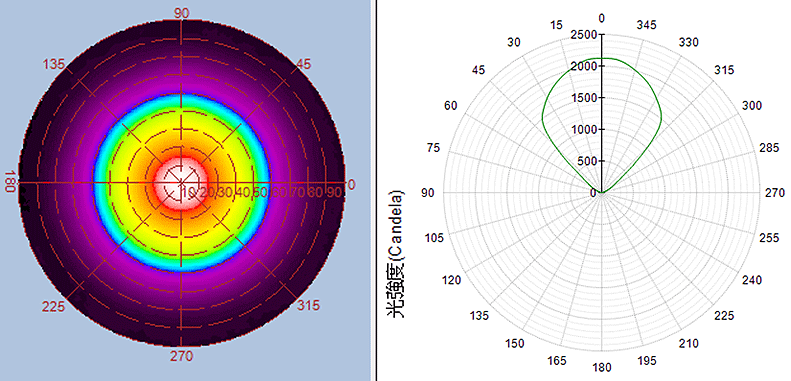

| GL-DLC06-35-CW / CCT : 5000K |
|
| |
 |
|
| |
