| Part No. |
9E-BLC0O000LK0001 |
| External Dimension(mm) |
283 (L) x 254 (H) x 54 (W) |
| Collocated with |
GL-BL300 series |
| Material/Color |
SUS201 / Silver Powder Coating |
| Packing |
1 pcs in one carton |
| Net Weight |
1.0 kg |
|
|
| |
| |
| Part No. AE-BLXXO000LK0001 |

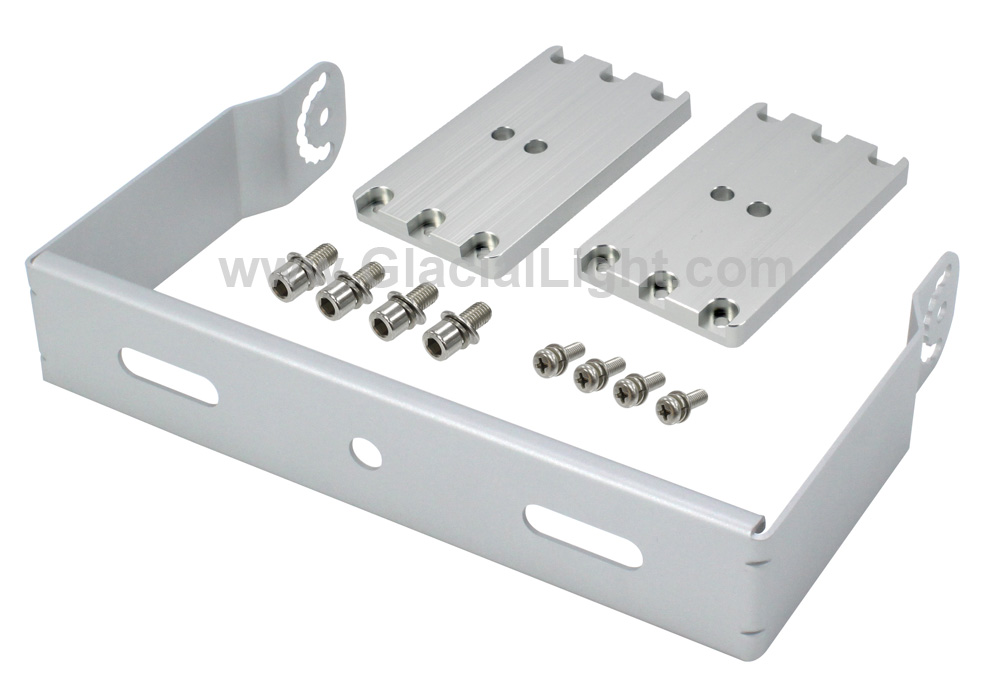

 Included accessories and parts |
 |
| |

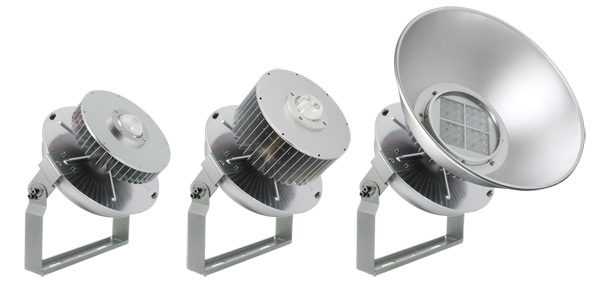

| Adjustable brace |
 |
| The bracket has a maximum adjustment angle of 180 degrees and can be adjusted into 8 different positions, each one 22.5 degrees apart. |
| |
| Dimension |
 |
| |
| After installation |
 |
| |
| |
| Part No. AE-BLA9O000LK0001 |
| Included accessories and parts |
.jpg) |
| |
| Adjustable brace |
 |
| The bracket has a maximum adjustment angle of 180 degrees and can be adjusted into 8 different positions, each one 22.5 degrees apart. |
| |
| Dimension |
.gif) |
| |
| After installation |
.jpg) |
| |
| |
| Part No. 9E-BLC0O000LK0001 |
| Included accessories and parts |
 |
| |
| After installation |
 |
| |
| Adjustable brace |
 |
| The bracket has a maximum adjustment angle of 180 degrees and can be adjusted into 8 different positions, each one 22.5 degrees apart. |
| |
| |
| Download |
|
 (AE-BLXXO000LK0001) Installation |
 |
| (AE-BLA9O000LK0001) Installation |
|
| (9E-BLC0O000LK0001) Installation |
|
|
| |
 |
| |
| |
| |
