 Siberia |
 |
|
|
|
| |
|
| |
Features

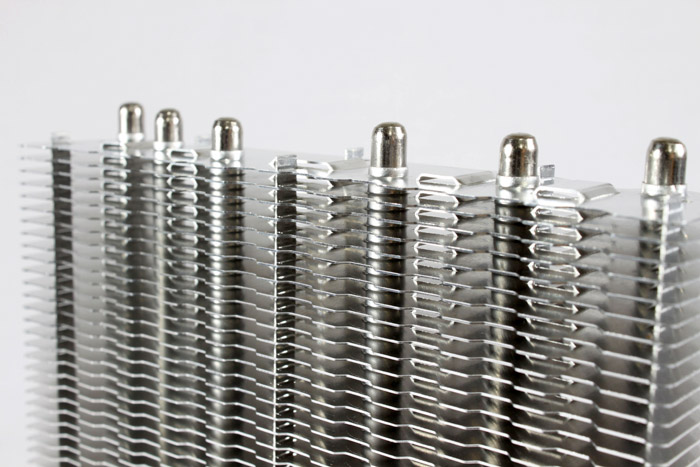

 Six Ø6 mm high performance heat pipes with nickel coating
Copper base
Fins with high heat exchange ratio
Multi-platforms (Intel LGA775/1155/1156/1366/2011 and AMD FM1/FM2/AM2/AM2+/AM3)
Easy to install.
|
| |
| Specifications |
| Model |
Siberia |
| Socket Type |
Intel LGA1150/1155/1156/2011/1366/775
AMD FM1, FM2, AM2, AM2+, AM3, AM3+ |
| CPU Compatibility |
Intel LGA1150:
4th Generation Intel® Core™ i7 Processors (up to 84W)
4th Generation Intel® Core™ i5 Processors (up to 84W)
Intel LGA1155:
3rd Generation Intel® Core™ i7 Processors (up to 77W)
3rd Generation Intel® Core™ i5 Processors (up to 77W)
3rd Generation Intel® Core™ i3 Processors (up to 55W)
2nd Generation Intel® Core™ i7 Processors (up to 95W)
2nd Generation Intel® Core™ i5 Processors (up to 95W)
2nd Generation Intel® Core™ i3 Processors (up to 65W)
Intel LGA2011:
Intel® Core™ i7-3960X Processor Extreme Edition (130W)
Intel LGA1366:
Intel® Core™ i7 Processor (Up to 130 watts)
Intel LGA775:
up tp 105W CPU
AMD:
FM1/FM2 A Series CPU (100W)
A4-3400, A6-3670K, A8-3870K (100W)
Phenom™ II X2, X3, X4, and X6 Processors (140W)
Phenom™ X3, X4 Cores Processors (125W)
Athlon™ II X2, X3, X4 Processor (95W)
Bulldozer FX Series Processor (125W) |
| Dimension (mm) |
146(W)x150(L)x120(H) |
| Weight (grams) |
620 |
| Fan |
Bearing Type |
Ultra Entering Bearing |
| Rated Voltage |
DC 12V |
| Dimension (mm) |
Up fan: 140 × 140 × 25; Down fan: 92 × 92 × 25 (mm) |
| MTBF (hour/25°C ) |
50,000 hours / 25°C |
| Speed(RPM) |
Up fan: PWM 800~1400 ; Down fan: 1300 |
| Airflow (CFM) |
Up fan: 72 CFM at 100% duty; Down fan: 19 CFM |
| Noise (dBA) |
Up fan: 33 Dba at 100% duty; Down fan: under 18 dBA |
| Safety |
UL, CE |
| Interface Material |
IceTherm II |
|
|
|
|
|
| |
| |
| |
|
|
|
| |
 |
| |
| |
|
|
