| Intel Series/ LGA1366 |
|
Polaris 6110 (1U Active) |
|
|
| |
 |
| Model Name |
Polaris 6110 (1U Active) |
| CPU Compatibility |
Intel LGA1366 |
| Weight (g) |
345 |
| Material |
Copper |
| Dimension (mm) |
88(L) × 88(W) × 28(H) |
| Fan Speed (rpm) |
PWM 2000~5000 |
| Bearing type |
Two ball bearing |
| Fan Dimension (mm) |
75 × 75 × 15 |
| Air Flow Rate (CFM) |
10.75 |
| Voltage (V) |
DC12V |
| Power Consumption (Watt) |
5.04 (MAX.5.28) |
| Operating Voltage (Volt) |
10.8 V~13.2 V DC |
| Noise (dBA) |
49 (MAX.52) |
|
| |
|
|
|
| |
|
|
| |
|

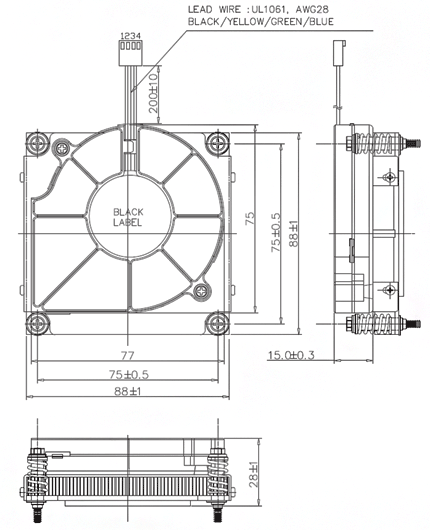

 dimension drawing |
| |
|
|
| |
|
 |
|
| |
| |
| |
| |
| |
|
|
|
| |
 |
| |
| |
|
|
