| DC Fan / Silent Blade |
|
Server Fan |
|
|
| |
 |
|
| |
| |
| |
 Specifications |
| Dimension (mm) |
80 x 80 x 38 |
80 x 80 x 38 |
| Working Voltage (VDC) |
10.8~13.2 |
10.8~13.2 |
| Starting Voltage (VDC) |
¡Ø7 |
¡Ø7 |
| Rated Voltage (VDC) |
12 |
12 |
| Rated Current (AMP) |
1.2 (max.) |
1.6 (max.) |
| Input Power (W) |
14.4 (max.) |
19.2 (max.) |
| Bearing System |
Two ball-bearing |
Two ball-bearing |
| Fan Speed (RPM) |
6,500 |
8,000 |
| Air Volume (CFM) |
95.68 |
120.05 |
| Static Pressure (mmH2O) |
22.80 |
35.2 |
| Noise (dBA) |
55.3 |
61.2 |
| MTBF (hours/25°C) |
70,000 |
70,000 |
| Safety |
CE |
CE |
|
| |
| |

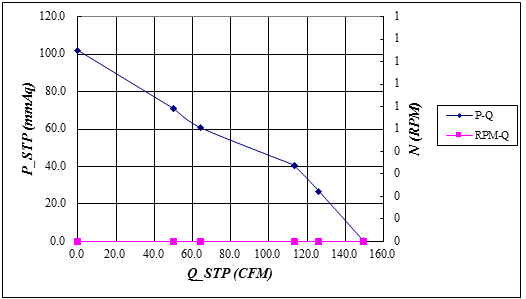

| Performance Curve |
 |
| |
| |
| |
| |
| |
| |
|
.jpg)
.jpg)
.jpg)
.jpg)
