| DC Fan / Silent Blade |
|
Server Fan |
|
|
| |

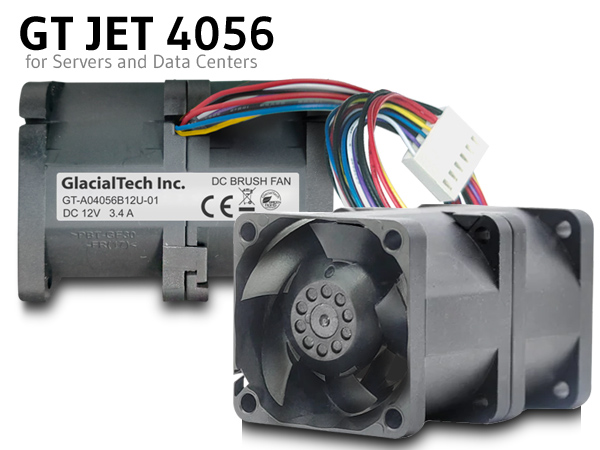

.jpg "Case Fan GT JET 4056 for Servers and Data Centers") |
| |
|
| |
| |
 Specifications |
| Dimension (mm) |
40 x 40 x 56 |
| Working Voltage (VDC) |
7~13.2 |
| Starting Voltage (VDC) |
¡Ø7 |
| Rated Voltage (VDC) |
12 |
| Rated Current (AMP) |
2.85 (3.40 max.) |
| Input Power (W) |
34.2 (40.8 max.) |
| Bearing System |
Two ball-bearing |
| Fan Speed (RPM) |
Front: PWM 0-26700 ±10% RPM;
REAR PWM 0-25100 ±10% RPM |
| Air Volume (CFM) |
45.08 CFM (41.02 CFM min.) |
| Static Pressure (mmH2O) |
172.7 mmH2O (139.9 mmH2O min) |
| Noise (dBA) |
74.1 dBA (77.1 dBA max.) |
| MTBF (hours/25°C) |
70,000 |
| Safety |
CE |
|
| |
| |

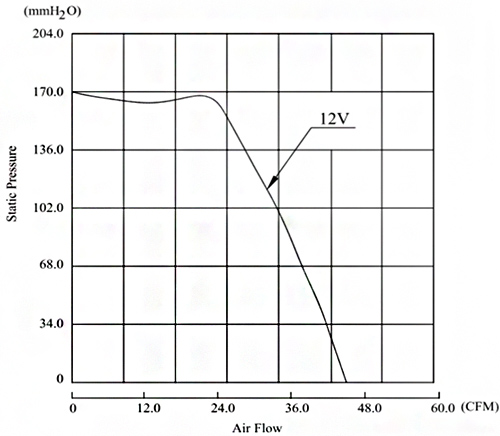

| Performance Curve |
| |
 |
| |
| |
| |
| |
| |
|
