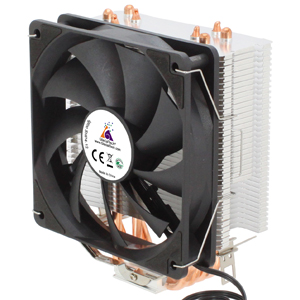

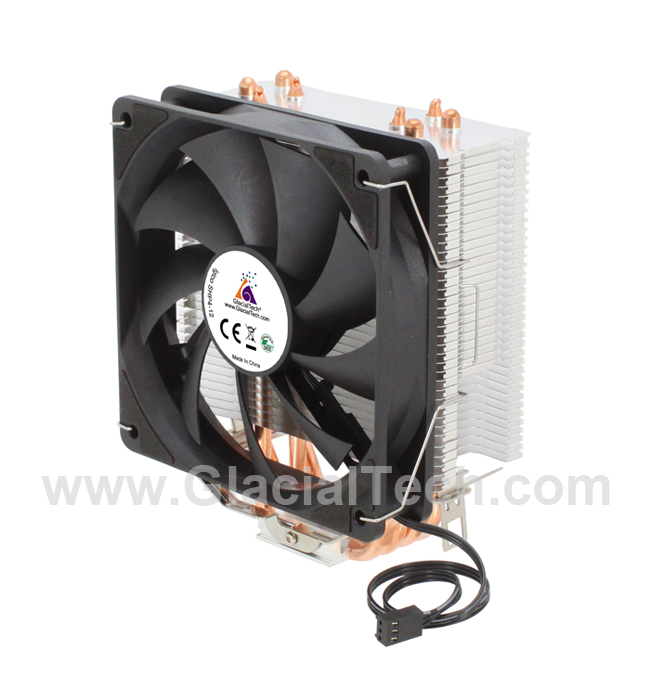

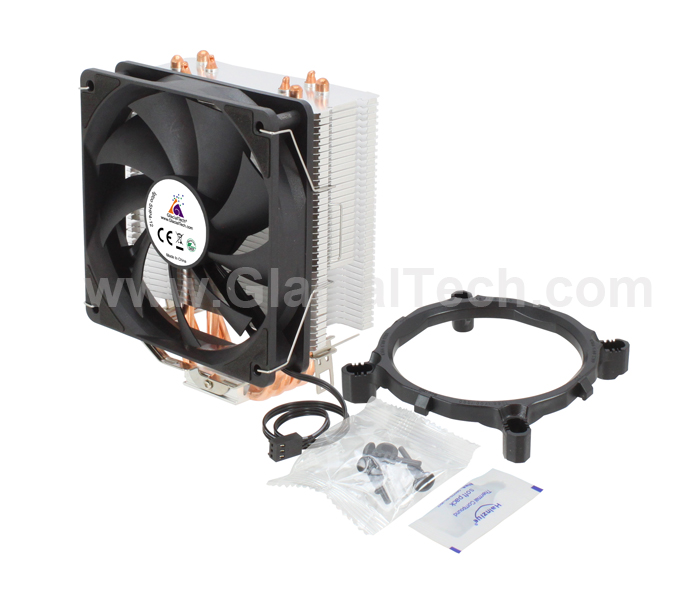

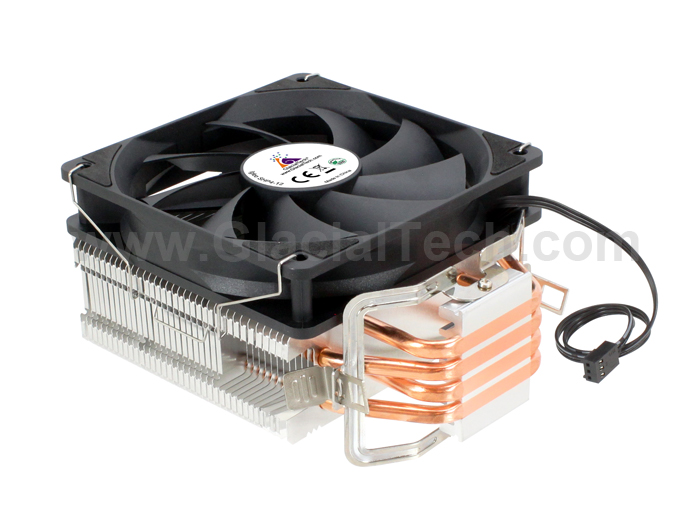

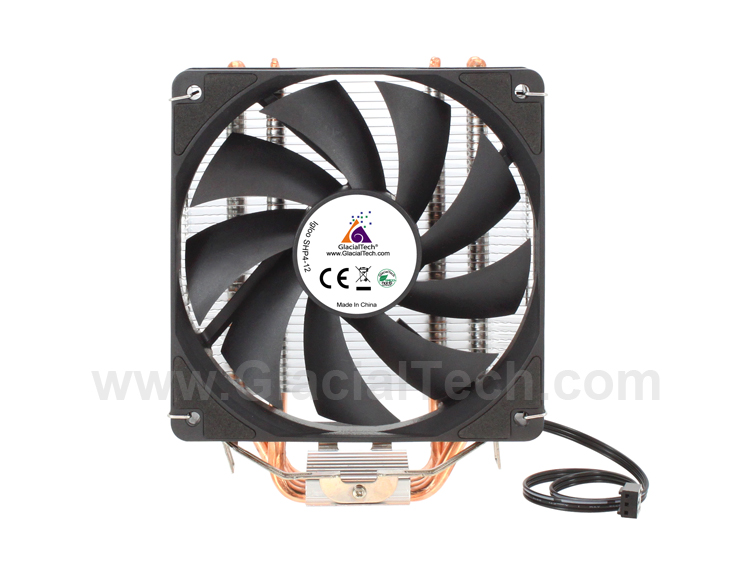

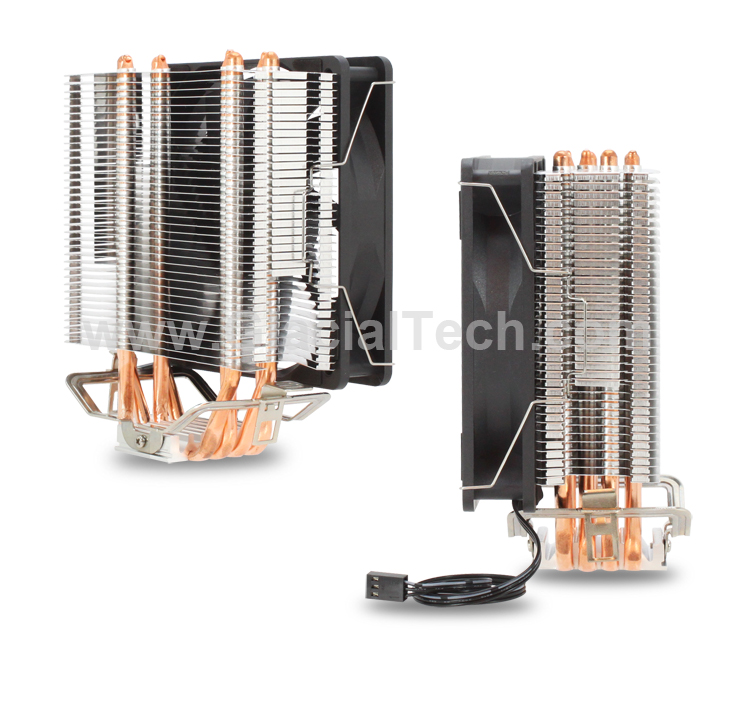

Multi-platform Solutions / Side Blowing   Igloo SHP4-12


Features
Four high heat capacity heat-pipes are used.
Heat-pipes contact CPU directly.
PWM fan is used.
Easy to install.


Specifications
Model Name Igloo SHP4-12
Socket Type Intel LGA1700 / 1200 /115X (up to 150W)
AMD AM4/AM5 (up to 170W+)
Dimension (mm) 120×67×150
Weight (gram) 380
Heatsink Material ALUMINUM + COPPER
Fan Bearing Type Hydro-Dynamic
Rated Voltage DC12V
Dimension (mm) 120×120×25
MTBF (hour/25°C) 40,000
Speed(RPM) PWM 900~2500 (4 pin, controllable)
Airflow (CFM) 105
Noise (dBA) 43
Safety CE
Cable length(mm) 300 ±10
Interface Material High Efficiency Thermal Compound
