| Intel LGA 1700 |
|

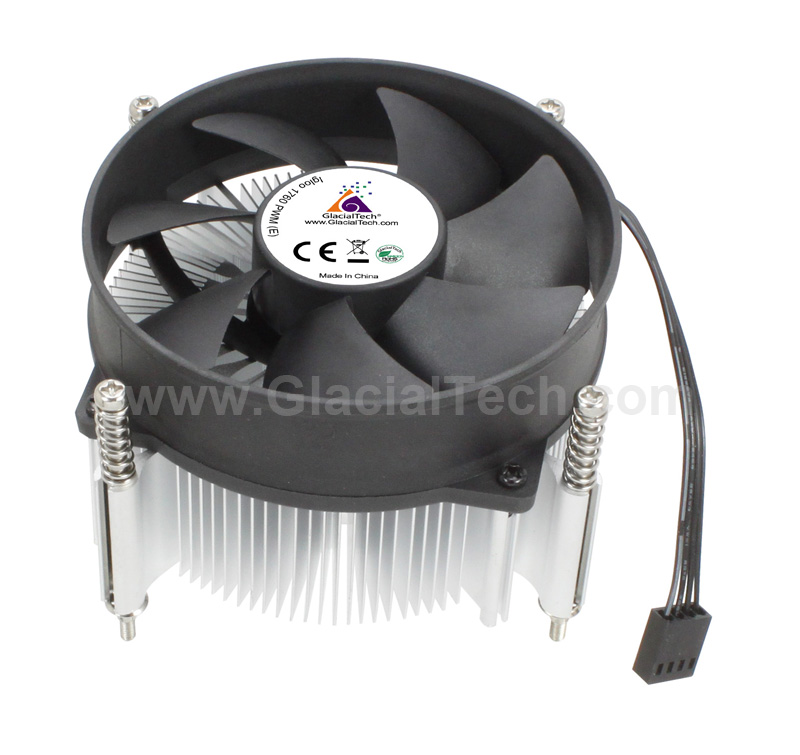

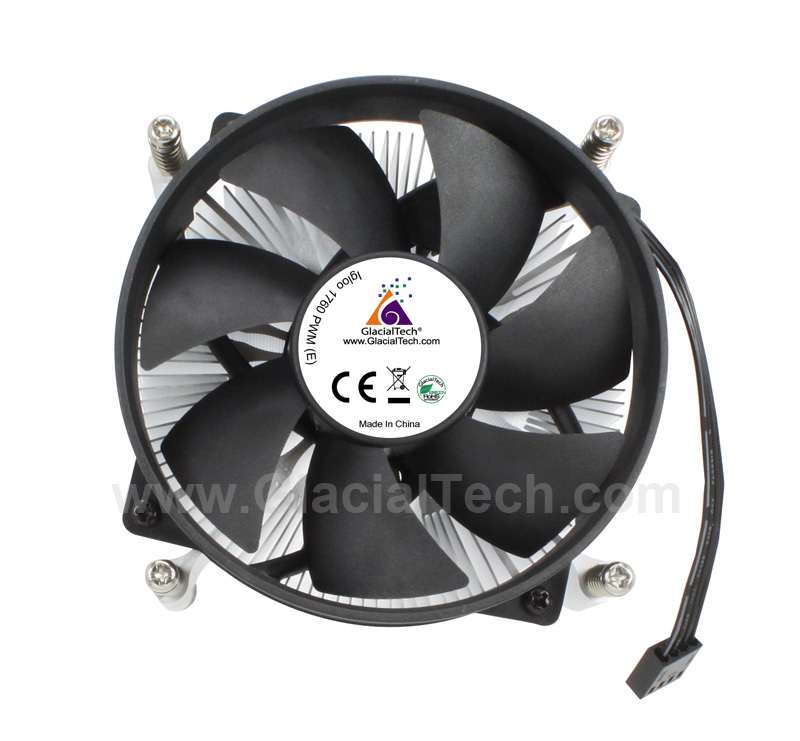

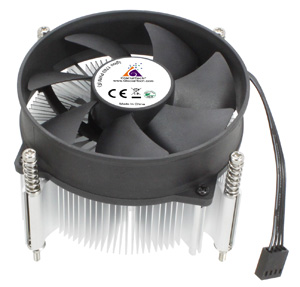

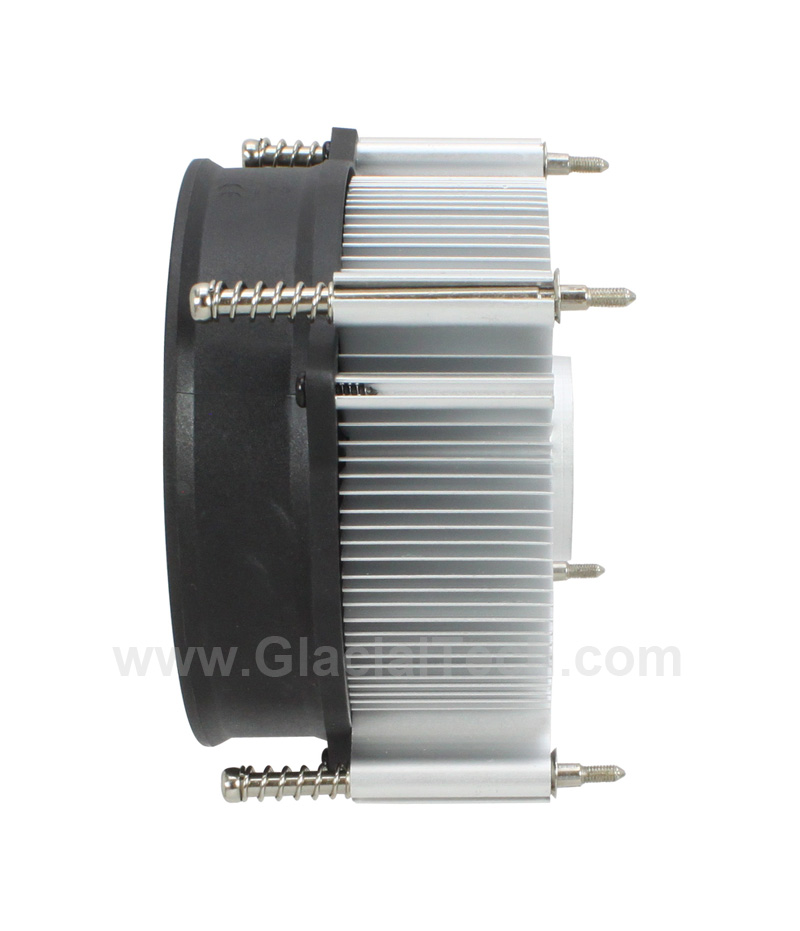

Igloo 1760 PWM(E) |
|
|
|
| |
|
|
| Model Name |
Igloo 1760 PWM(E) |
| Socket Type |
Intel LGA1700 |
| CPU Compatibility |
Intel® Core™ i3, i5, i7 (12/13 gen, up to 65W+) |
| Dimension (mm) |
Ø95 × 60 |
| Weight (gram) |
360 |
| Fan |
Bearing Type |
Hydro-Dynamic |
| Dimension (mm) |
Ø95 × 25 |
| Speed (rpm) |
PWM 900~2600 |
| Airflow (CFM) |
50 (max.) |
| Noise (dBA) |
35 (max) |
| Rated voltage (VDC) |
12 |
| MTBF (hours: 25℃/ RH65%) |
40,000 |
| Safety |
CE |
| Material-Heat sink |
Aluminum 6063T5 |
| Material-Thermal compound |
High Efficiency Thermal Compounds |
|
| |
| |
| |
| |
| |
|
|
|
| |
 |
| |
| |
|
|
