　DC Fan / GT JET   Server Fan
Download


Key Features
  • The GT JET 8086 features a counter-rotating fan design with an extended 86 mm depth profile that optimizes airflow dynamics while effectively minimizing turbulence. This enhanced configuration delivers denser, more focused airflow even under extreme system back pressure, making it an ideal solution for the most demanding server cooling applications¡Xparticularly those involving high-density heat sink arrays.
  • The GT JET 8086 features an advanced optimized impeller design, incorporating precision-engineered leading-edge chamfers and an integrated vent structure to maximize aerodynamic efficiency while effectively suppressing noise, vibration, and motor temperature rise. The extended 86 mm chassis further enhances structural rigidity, ensuring stable, high-speed operation even under sustained, heavy workloads.
  • To deliver maximum reliability in mission-critical environments, the GT JET 8086 is equipped with a premium dual ball bearing system, purpose-engineered for high-temperature, high-speed, and continuous-duty operation. An enhanced integrated copper tube structure further provides superior motor heat dissipation and shaft stability, ensuring exceptional durability and sustained cooling performance even under prolonged high-load server operation.
  • To meet the demands of advanced server thermal management, the GT JET 8086 supports PWM intelligent speed control, enabling precise fan speed adjustments in response to real-time system thermal conditions. Optional fault feedback functionality is also available, facilitating comprehensive system monitoring and seamless integration with server management infrastructures.

Specifications
Model (TYPE A) Rated
Voltage
(VDC) 		Rated
Current
(A)		 Power
Consumption
(Watts)		 Speed
Inlet/outlet
(rpm)
 Air Flow
(CFM) 		Static
Pressure
(mmH2O)		 Noise
(dBA)
GT-A08060B12U 12 11.0 132.0 17,300/16,000 190.8 242.4 82.8
 1. Material：Plastic PBT + 30% (UL：94V-0) ;
 2. Bearing Type：Two ball bearing.
 3. Protection：Auto-Restart.
 4. Operating Temperature：-10 ~ 70 °C.
 5. Weight：577 gram (ref.)

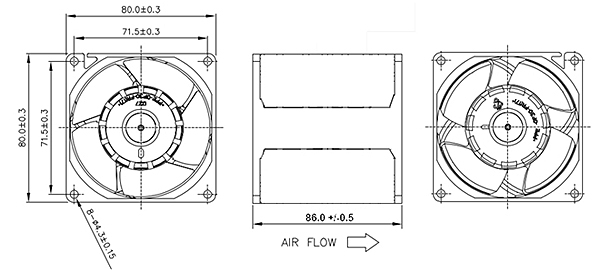

Dimension

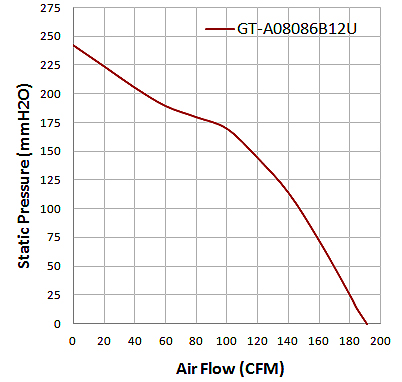

P-Q Curve:
