DC Fan / GT JET |
|
Server Fan |
|
|
Download |
.jpg) |
|
|
|
Key Features |
- Integrated Stator Blade Frame: Optimizes airflow direction and corrects vortex patterns, significantly reducing turbulence and energy loss.
- Dual ball bearing construction: Engineered for high-temperature, high-speed, and long-duration reliability.
- The copper tube enhances heat dissipation and shaft stability, improving fan durability and cooling efficiency.
- Supports intelligent speed control (PWM) and fault feedback (option).
|
|
Specifications |
Model (TYPE A) |
Rated
Voltage
(VDC) |
Rated
Current
(A) |
Power
Consumption
(Watts) |
Speed
Inlet/outlet
(rpm) |
Air Flow
(CFM) |
Static
Pressure
(mmH2O) |
Noise
(dBA) |
GT-A08038B12H |
12 |
2.63 |
31.56 |
14,600 |
127.19 |
98.80 |
73.3 |
1. Material:Plastic PBT (UL:94V-0) ;
2. Bearing Type:Two ball bearing.
3. Protection:Auto-Restart.
4. Operating Temperature:-20 ~ 70 °C.
5. Weight:220 gram (ref.) |
|
|
|

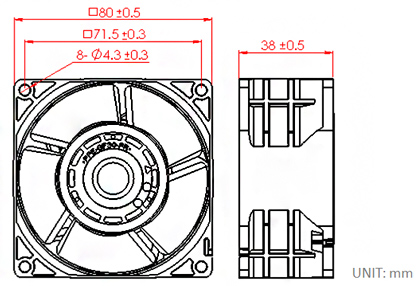

Dimension |
.jpg) |
|

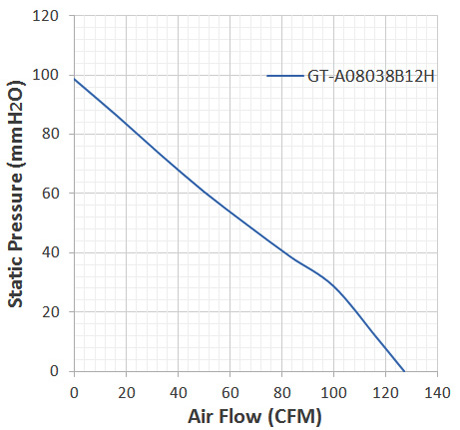

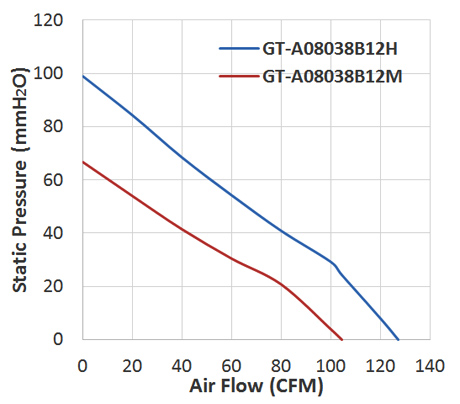

P-Q Curve: |
.jpg) |
|
|
|
|
|
