| DC Fan / GT JET |
|
Server Fan |
|
|
Download |

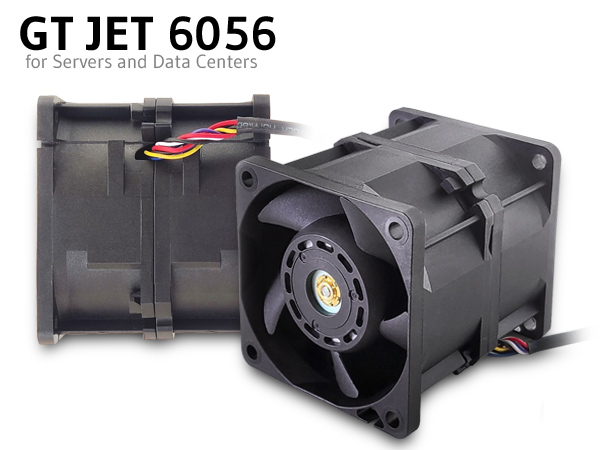

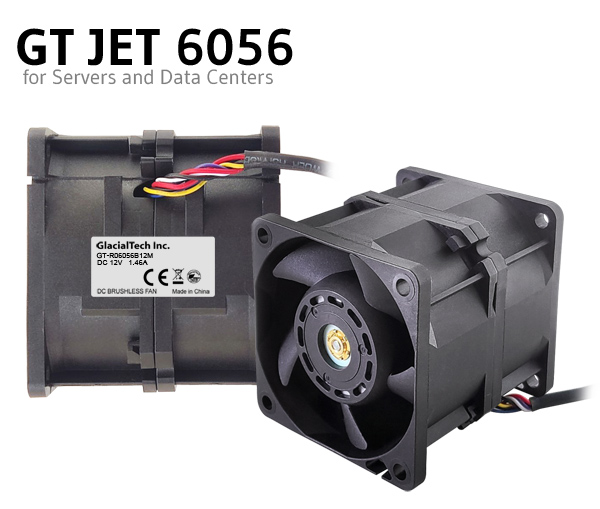

.jpg "Case Fan GT JET 6056 for Servers and Data Centers") |
| |
|
| |
| |
 Key Features |
- Dual counter-rotating fan design: Enhances airflow concentration and penetration for superior cooling performance.
- High static pressure and high airflow rate.
- Dual ball bearing construction: Engineered for high-temperature, high-speed, and long-duration reliability.
- Supports intelligent speed control (PWM) and fault feedback (option).
|
| |
| Specifications |
| Model (TYPE A) |
Rated
Voltage
(VDC) |
Rated
Current
(A) |
Power
Consumption
(Watts) |
Speed
Inlet/outlet
(rpm) |
Air Flow
(CFM) |
Static
Pressure
(mmH2O) |
Noise
(dBA) |
| GT-R0605612BM |
12 |
1.46 |
17.52 |
13,500/11,400 |
61.24 |
69.75 |
68.4 |
| GT-R0605612BH |
12 |
2.45 |
29.40 |
16,000/13,700 |
78.36 |
106.87 |
73.7 |
| GT-R0605612BU |
12 |
3.11 |
37.32 |
18,000/15,800 |
84.55 |
127.12 |
76.9 |
1. Material：Plastic PBT (UL：94V-0) ;
2. Bearing Type：Two ball bearing.
3. Protection：Auto-Restart.
4. Operating Temperature：-20 ~ 70 °C.
5. Weight：192 gram (ref.) |
|
| |
| |
| Dimension |
.jpg) |
| |

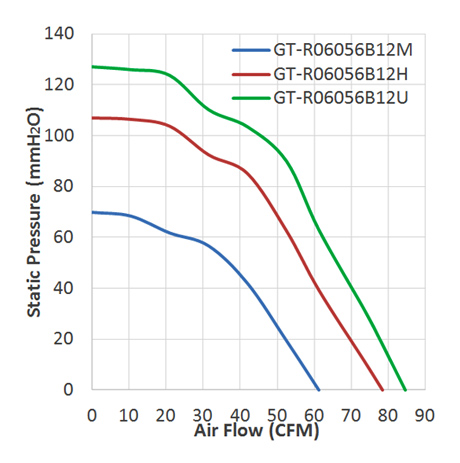

| P-Q Curve: |
.jpg) |
| |
| |
| |
| |
|
