| Desktop PC / ITX PC |
|
Intel LGA 1700 / 1851  Igloo 1857 (E) |
|
|
|
| |
|
|
| Model |

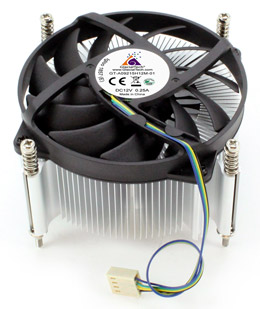

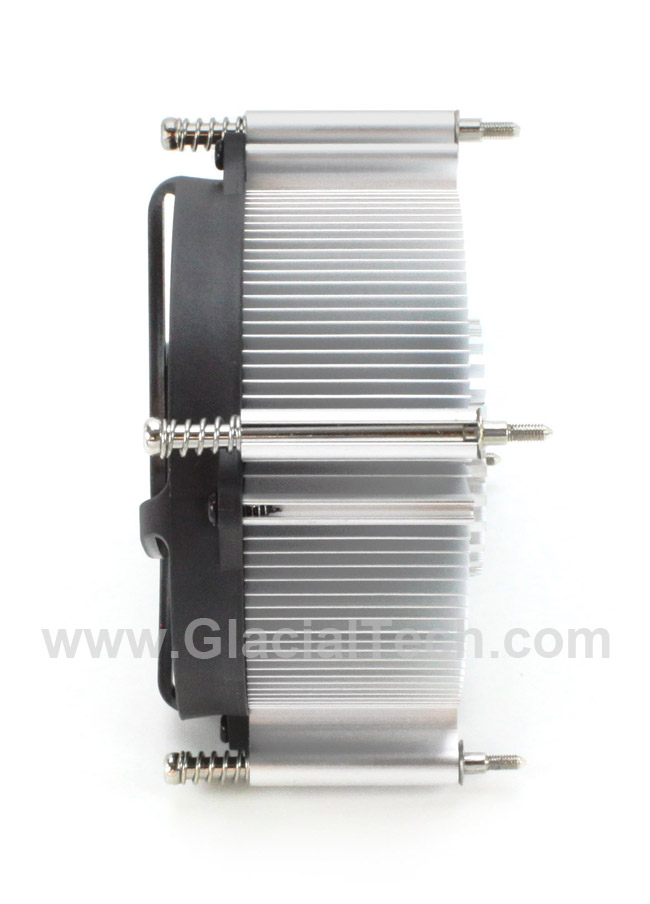

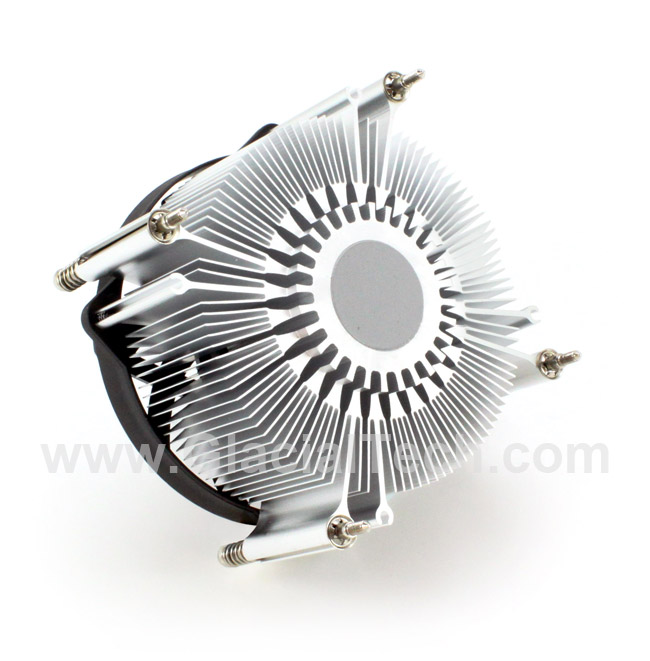

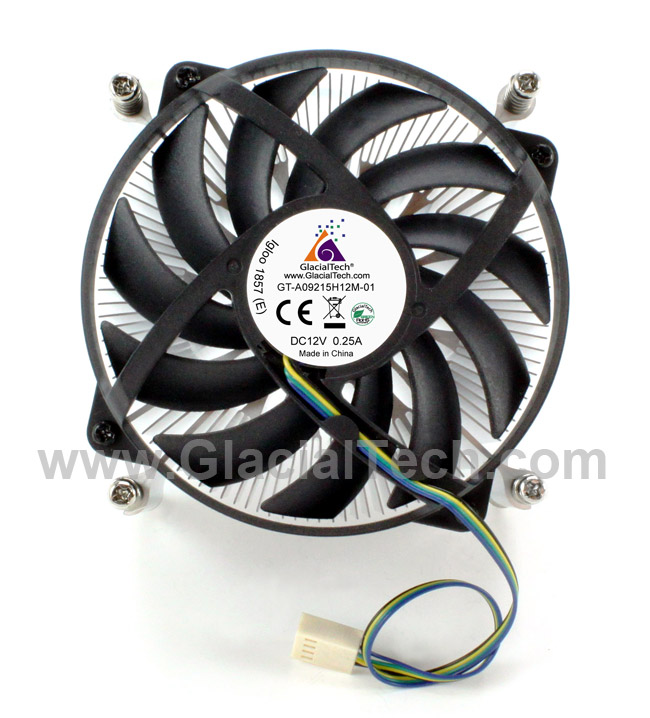

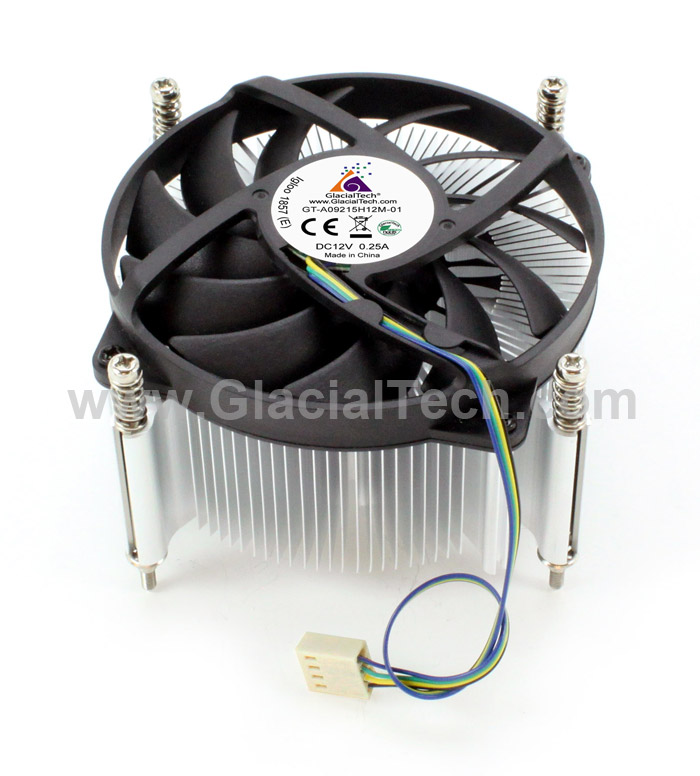

Igloo 1857 (E) |
| Socket Type |
Intel LGA 1700 / 1851 |
| Thermal Capacity (watts) |
95 |
| Ref. CPU temp. (°C) |
80
(w/o ODD bay ) |
| Dimension (mm) |
Ф 94 × 57 |
| Weight (gram) |
373 |
| Heatsink Material |
Aluminum |
| Fan |
Bearing Type |
Hydro-Dynamic |
| Rated Voltage |
DC12V |
| Dimension (mm) |
Ø 94 × 17 |
| MTBF (hour/25°C) |
40,000 |
| Speed(RPM) |
PWM 1000 ~ 2800 (4 pin, controllable) |
| Airflow (CFM) |
47.6 |
| Noise (dBA) |
≤ 33.4 |
| Safety |
CE |
| Cable length (mm) |
150 ± 10 |
| Interface Material |
High Efficiency Thermal Compound |
| The reference CPU temperature is based on the inside air temperature of 35 °C. |
|
| |
| |
| |
| |
| |
|
|
|
| |
 |
| |
| |
|
|
