 LED Driver - Plastic Housing / CC - IP |
| |
 |
GP-HS Series (4W ~ 60W) |
|
| |
 |
| GP-HS05N Series (without PFC function) |
 Features
 Universal AC Input 90~264VAC.
Constant Current Operation.
Suitable for High Brightness Light-Emitting Diode Products.
Protections: OCP/ SCP.
Cooling by Free Air Convection.
IP67. |
|
|
| Output Loading |
| Model No. |
Output Voltage |
Rated Current |
Efficiency |
Dimension |
Watts |
Datasheet |
| GP-HS05N-07C |
5-7.5V |
700mA |
70% |
57 x 41 x 24mm |
5.2W |
 |
| GP-HS05N-12C |
7-12V |
350mA
|
70% |
57 x 41 x 24mm |
4.2W |
| GP-HS05N-24C |
15-24V |
200mA |
70% |
57 x 41 x 24mm |
4.8W |
|
| |
| Model No. |
Output Voltage |
Rated Current |
Efficiency |
Dimension |
Watts |
Datasheet |
| GP-HS05N-12C1 |
3-11.6V |
400mA
|
70% |
57 x 41 x 24mm |
4.6W |
|
|
Safety Approval    |
|
 |
| GP-HS10P Series |
Features
Universal AC Input 90~264VAC.
Constant Current Design.
For High Brightness Light-Emitting Diode Products.
Fully Isolated Plastic Case.
Built-in Constant Current Limiting Design.
Operation from -20°C ~ 60°C Full Load.
Protections: OTP / SCP.
Class II Power Design Without Earth Pin.
IP67 Class . |
|
|
| Output Loading |
|
Safety Approval  |
|
|
| GP-HS15P Series |
Features
Universal AC Input 90~264VAC.
Constant Current Design.
For High Brightness Light-Emitting Diode Products.
Fully Isolated Plastic Case.
Built-in Constant Current Limiting Design.
Operation from -20°C ~60°C Full Load.
Protections: OTP / SCP.
Class II Power Design Without Earth Pin.
IP67 Class. |
|
|
| Output Loading |
| Model No. |
Output Voltage |
Rated Current |
Efficiency |
Connector type |
Dimension |
Watts |
Datasheet |
GP-HS15P-12C
|
8-12V |
1250mA
|
81% |
Stripped |
110 x 35 x 25mm |
15W |
|
| GP-HS15P-22C1 |
14-24V |
700mA |
83% |
Stripped |
110 x 35 x 25mm |
16.8W |
| GP-HS15P-30C |
24-30V |
500mA |
83% |
Stripped |
110 x 35 x 25mm |
15W |
| GP-HS15P-36C |
24-36V |
450mA |
83% |
Stripped |
110 x 35 x 25mm |
16.2W |
|
| GP-HS15P-36C2 |
24-38V |
420mA |
83% |
Stripped |
110 x 35 x 25mm |
15.96W |
|
| GP-HS15P-42C |
26-42V |
350mA |
84% |
Stripped |
110 x 35 x 25mm |
14.7W |
|
| GP-HS15P-48C |
26-48V |
300mA |
84% |
Stripped |
110 x 35 x 25mm |
14.4W |
| GP-HS15P-52C |
30-52V |
300mA |
84% |
Stripped |
110 x 35 x 25mm |
15.6W |
|
|
| Safety Approval |
|
 |
| GP-HS25P Series |
Features
Universal AC Input 90~295VAC.
Constant Current Operation.
For High Brightness Light-Emitting Diode products.
Built-in PFC Function.
Fully Isolated Plastic Case.
Protections: OTP / SCP / OVP.
THD＜20% at 240VAC/50Hz.
Operation From -20°C ~50°C Full Load.
Class 2 Power Supply Unit.
IP67 Class. |
|
|
| Output Loading |
| Model No. |
Output Voltage |
Rated Current |
Efficiency |
Connector
type |
Dimension |
Watts |
Datasheet |
GP-HS25P-12C
|
8-12V
|
2100mA
|
82% |
Stripped |
190 x 30.5 x 25mm |
25.2W |
|
| GP-HS25P-18C |
12-18V |
1400mA |
83% |
Stripped |
190 x 30.5 x 25mm |
25.2W |
| GP-HS25P-24C |
16-24V |
1050mA |
84% |
Stripped |
190 x 30.5 x 25mm |
25.2W |
| GP-HS25P-36C |
21-36V |
700mA |
85% |
Stripped |
190 x 30.5 x 25mm |
25.2W |
| GP-HS25P-36C1 |
21-38V |
660mA |
85% |
Stripped |
190 x 30.5 x 25mm |
25.08W |
|
| GP-HS25P-48C1 |
33-42V |
600mA |
84% |
Stripped |
190 x 30.5 x 25mm |
25.2W |
|
| GP-HS25P-48C |
35-48V |
520mA |
85% |
Stripped |
190 x 30.5 x 25mm |
24.9W |
| GP-HS25P-52C |
42-52V |
480mA |
85% |
Stripped |
190 x 30.5 x 25mm |
24.9W |
| GP-HS25P-52C1 |
42-52V |
350mA |
82% |
Stripped |
190 x 30.5 x 25mm |
18.2W |
|
| Safety Approval |
|
 |
| GP-HS35P-48C (CV + CC) |
Features
Universal AC Input 90~305VAC.
Constant Voltage / Constant Current Operation.
For High Brightness Light-Emitting Diode Products.
Built-in PFC Function.
Fully Isolated Plastic Case.
Protections: OVP / SCP / OTP.
Operation From -20°C ~50°C Full Load.
Class 2 Power Supply Unit.
IP67 Class. |
|
|
| Output Loading |
| Model No. |
Output Voltage |
Rated Current |
Efficiency |
Connector type |
Dimension |
Watts |
Datasheet |
| GP-HS35P-48C |
33- 48V |
700mA |
83% |
Stripped |
110 x 73.5 x 33 mm |
33.6W |
|
|
| Safety Approval |
|
 |
| GP-HS60P-24C1 |
Features
Universal AC Input 90 ~ 305VAC.
Constant Current Operation.
Suitable for High Brightness LED Products.
Built-in PFC Function.
Protections: OVP / OCP / SCP / OTP.
Class II/2 Power.
IP67 Class. |
|
|
| Output Loading |
| Model No. |
Output Voltage |
Rated Current |
Efficiency |
Connector type |
Dimension |
Watts |
Datasheet |
| GP-HS60P-24C1 |
16-24V |
2.2A |
86% |
Stripped |
163 x 44.2 x 32.5mm |
52.8W |
|
|
| Safety Approval |
|
|
| GP-HS60P-42C1 |
Features
Universal AC Input 90 ~ 305VAC.
Constant Current Operation.
Suitable for High Brightness LED Products.
Built-in Active PFC Function.
Protections: OVP / OCP / SCP / OTP.
THD＜20% at 230VAC.
Meet Application for ErP EU_1194_2012,Stage 3.
No Load Consumption＜0.5W.
Set up Time＜0.5 Sec at 230VAC.
Class II/2 Power.
IP67 Class. |
|
|
| Output Loading |
| Model No. |
Output Voltage |
Rated Current |
Efficiency |
Connector type |
Dimension |
Watts |
Datasheet |
| GP-HS60P-42C1 |
28-42V |
1.4A |
87% |
Stripped |
163 x 44.2 x 32.5mm |
58.8W |
|
|
| Safety Approval |
|
 |

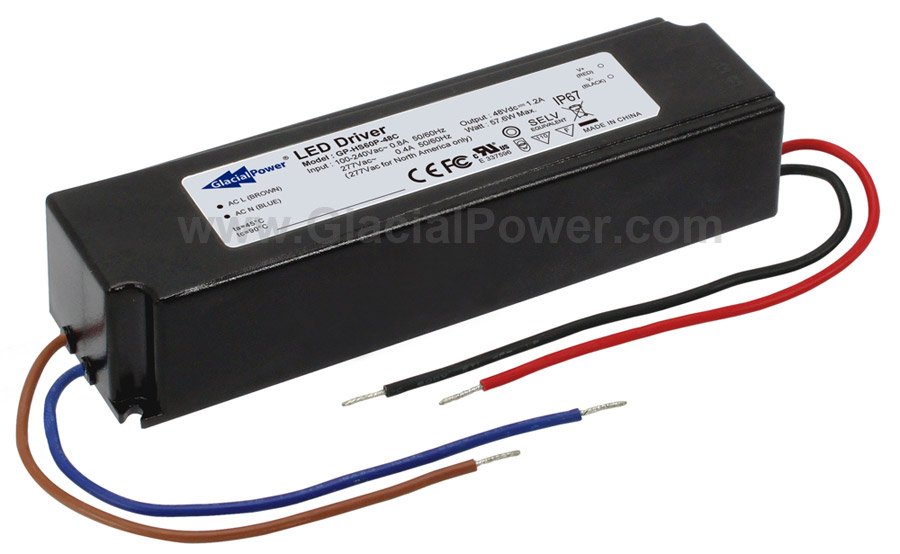

| GP-HS60P-48C |
Features
Universal AC Input 90 ~ 305VAC.
Constant Current Operation.
Suitable For High Brightness LED Products.
Built-in Active PFC Function.
Protections: OVP / OCP / SCP / OTP .
Class II/2 Power .
IP67 Class. |
|
|
| Output Loading |
| Model No. |
Output Voltage |
Rated Current |
Efficiency |
Connector type |
Dimension |
Watts |
Datasheet |
| GP-HS60P-48C |
33-48V |
1.2A |
88% |
Stripped |
163 x 44.2 x 32.5mm |
57.6W |
|
|
| Safety Approval |
|
| |
