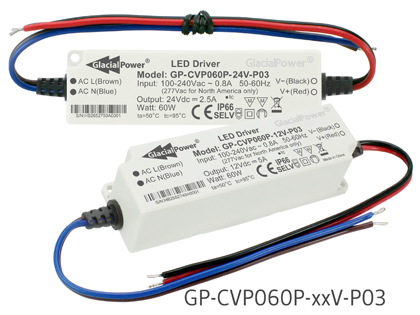

GlacialTech Announces the World’s Smallest 60W LED Power Driver


TAIPEI, Taiwan, March 23, 2026 — GlacialTech today announced the launch of the world’s smallest 60W LED power driver. This waterproof 60W LED power supply series offers several outstanding features, including wide input voltage support (90–305VAC), high efficiency of up to 91.5%, and an ultra-compact design measuring only 114.5 x 35 x 29 mm.

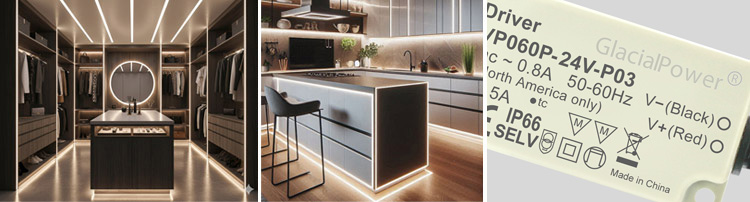

The GP-CVP060P-xxV-P03 series is available in three output voltage options—12V, 24V, and 48V—making it an ideal solution for both commercial and residential lighting applications, including LED signage, furniture lighting, and smart lighting control systems. Common signage applications include channel letters, light boxes, neon-style LED signs, and exposed LED signage. The product is also designed for furniture lighting and complies with VDE 0710 Part 14 MM marking requirements, meeting the testing standards for electrical products intended to be mounted on or installed in wooden furniture.

The luminous efficacy (lm/W) of a lighting fixture depends not only on the light source—such as LED chips, modules, and strips—but also on the efficiency of the LED power supply. GlacialPower’s GP-CVP060P-xxV-P03 series delivers up to 91.5% power efficiency, one of the highest levels available in the current 60W market, helping customers achieve more energy-efficient lighting designs compared to competing solutions.

Equipped with active PFC, the power supply also meets mainstream market requirements and includes comprehensive protection features such as OVP, OCP, and SCP. Additional specifications include no-load power consumption of less than 0.5W at 230VAC and a startup time of under 0.5 seconds at full load (230VAC). The operating temperature range spans from -30°C to 50°C. Even under demanding conditions—such as input voltage dropping to 100VAC and ambient temperatures reaching 50°C—the GP-CVP060P-xxV-P03 series is able to maintain its rated output power. This reliability is especially critical for outdoor installations and enclosed LED signage operating in high-temperature environments.

For more information about the GP-CVP060P-xxV-P03 series, please visit GlacialPower’s website or contact our sales team.

Features
Universal AC Input Range 90 ~ 305VAC.
Constant Voltage mode.
Active PFC design.
Protections: OVP / OCP / SCP.
High Efficiency up to 91.5 %
Fully Insulated Plastic Case.
Meet application for ErP (EU) 2019/2020
No-load power consumption < 0.5W at 230VAC
Set up time < 0.5S at 230VAC.
Suitable for commercial and residential lighting, LED signage, furniture lighting,
and smart lighting control systems.
Surge protection :2KV (Line-Line)
Specifications
Model No. GP-CVP060P-12V-P03 GP-CVP060P-24V-P03 GP-CVP060P-48V-P03
Output DC Voltage 12V 24V 48V
Rated Current 0~5A 0~2.5A 0~1.25A
Rated Power 60W 60W 60W
Ripple &Noise (Max.) 200mV 200mV 200mV
Efficiency at 230VAC (Typ.) 90% 91.5% 91%
Voltage Tolerance ± 5% ± 5% ± 5%
Set up time (Max.) ≦0.5S at 230VAC, full load.
Input Rated Voltage 100 ~ 277VAC   141~380VDC
Voltage Range 90 ~ 305VAC
Frequency Range 47 Hz ~ 63 Hz
AC Current (Max.) 0.68A at 115VAC / 0.34A at 230VAC
Power Factor >0.98 at 115VAC / >0.95 at 230VAC, full load.
Total Harmonic Distortion THD < 15% at 230VAC, full load
Inrush Current (Typ.) Cold Start 40A (Td=380us measured at 50% Ipeak) at 230VAC
Max. Number of PSUs
on Circuit Breaker
B type : 5 units (10A) / 8 units (16A) / 12 units (25A),
C type : 8 units (10A) / 13 units (16A) / 20 units (25A),
D type : 18 units (16A) / 29 units (25A) at 230VAC
Leakage Current <1mA at 240VAC
No-load power consumption < 0.5W at 230VAC (0.45W Typ.)
Protections Over Current 105%~150% 105%~150% 105%~150%
Type:Constant current limiting (Auto recovery after fault condition disappeared)
Short Circuit Type: Hiccup mode (Auto recover after fault condition disappeared).
Over Voltage 13.2V~18V 26.4V~36V 52.8V~72V
Type: Hiccup mode (Auto recover after fault condition disappeared).
Others MTBF 100K hours min.   MIL-HDBK-217F(25°C)
Dimension(L x W x H) 114.5 x 35 x 29mm;  216g/pcs
Read more information about the GP-CVP060P-xxV-P03, please visit:
https://www.glacialtech.com/GP/products/led-driver-Plastic-CV-IP-CVP.htm
https://www.glacialtech.com/GP/products/pdf/GP-CVP060P-xxV-P03.pdf
