| Procyon Series (AC input) |
GL-SP15 Series |
|
 |

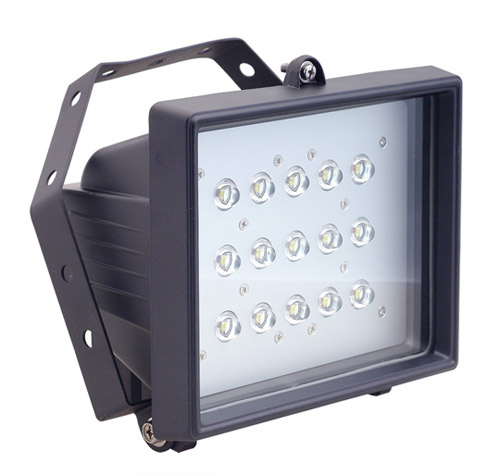

| The unique SP15 Series LED Spotlights, proudly introduced by GlacialTech to the lighting market, use 17W high power LEDs as the light source and have excellent features, like long lifetime (>30,000 hrs min.), high luminous efficacy, and low environmental pollution. They are designed to use an AC source of 100-240V and provide an ideal choice for spotlight/outdoor lighting. |
| |
| Features |
 Indoor and outdoor use |
| Equivalent to traditional 150W mercury lamps |
| Power factor > 0.9 at 115V AC; Power factor > 0.8 at 30V AC |
| High power efficiency > 80% |
| High luminous efficacy LEDs |
| No UV or IR radiation |
Compliance with safety standard:
EN60598, EN61347-1+EN61347-2-13,EN55015+EN61547, EN60825-1, FCC Part 18, |
| Cool light, which can reduce the rise of the ambient temperature |
| Energy saving and environment friendly |
| IP65 (without sensor type)/IP54 (with sensor or CCD type) dust and water proof |
 |
| |
| Specifications |
| Model No. |
GL-SP15-WW |
GL-SP15S-WW
GL-SP15C5-WW
GL-SP15C6-WW |
GL-SP15-CW |
GL-SP15S-CW
GL-SP15C5-CW
GL-SP15C6-CW |
| CCT(Color) |
3000K |
6000K |
| Power Consumption |
20 W |
21 W |
20 W |
21 W |
| Luminous Flux (lm) |
720 lm |
1,050 lm |
| Input Voltage |
100-240V AC |
| Input AC Current (Max.) |
115V AC / 1.5A ; 230V AC /1A |
| Operation Temperature |
-20 °C － +40 °C |
| System Efficacy |
36 lm/W |
35 lm/W |
53 lm/W |
50 lm/W |
| CRI |
> 80 |
> 75 |
| Beam Angle |
30 ° / 60 °(optional) |
| Warranty |
2 Years |
| Applications |
Indoor and Outdoor Lighting/ Architectural Lighting/ Landscape Lighting/ Spot Lighting/Public Place Lighting/ Security Lighting/ Surveillance System |
| Outline Dim |
185*175*130 mm |
185*260*140 mm |
185*175*130 mm |
185*260*140 mm |
| Net. Weight |
1200 g |
1300 g |
1200 g |
1300 g |
| Package |
6 Boxes / Carton |
| Box Dimension/ Weight |
Without sensor: L=195*148*190mm / 1.6 KG
With sensor: L=285*197*148mm / 1.8 KG |
|
* All specifications apply to the fixture assembly as a whole.
Due to the slight variations in the testing environment such as differences in ambient temperature or test equipment calibration, specifications are statistical reference values and may not match the actual technical parameters of an individual product. |
| |

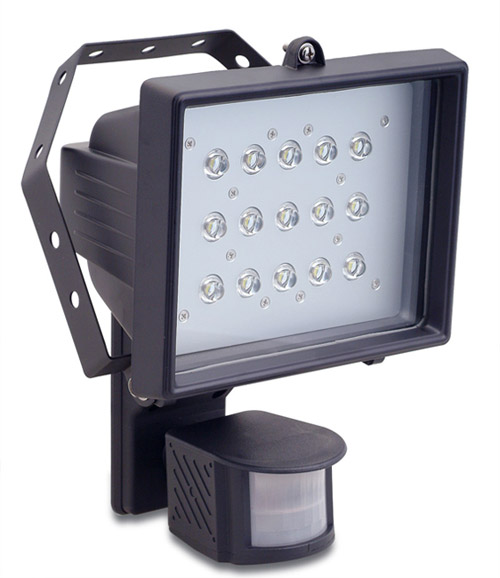

| Sensor (optional) |
| Sensor Style |
Automatic infrared heat detector |
| Sensing Coverage |
4-15 meters. Center-horizontal moving |
| Detection Range |
90° – 110° |
| Light Up Time |
7 seconds to 12 minutes |
| Operating |
24hrs |
| Protection Device |
Inlaid with 220V / 10A 5 x 20 mm fuse |
|
| |

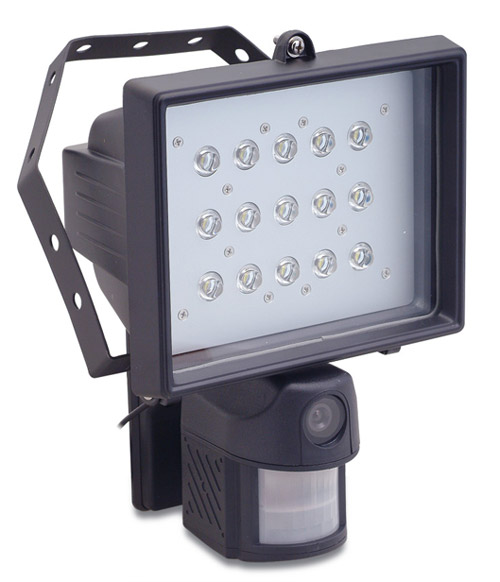

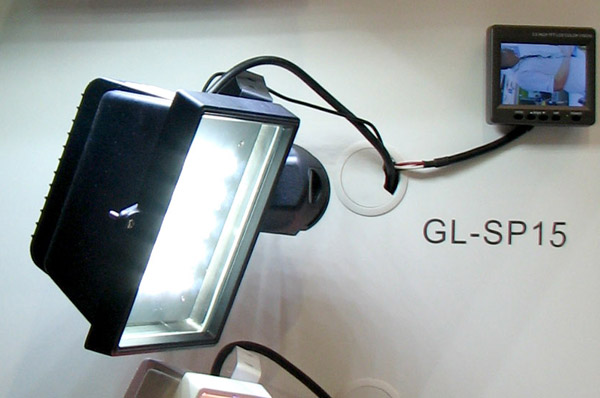

| CCD (optional) |
| Image Pick-up Device |
Sony 1/3" color CCD |
| Gamma Characteristic |
0.45 |
| Lens Furnished |
Board lens 3.6 mm / f2.0 |
| Video Output |
1 vp-p composite video / 75 ohms |
| S/N Ratio |
More than 48 dB |
| Gain Control |
Automatically |
| Signal |
24H 1Vp-p video signal output |
| Horizontal Resolution |
380TVL (optional 480TVL / 540TVL ) |
| Work Frequency |
60Hz(110V) / 50Hz (220V) |
|
| |
