 Function |
 Double Gimbal design allows 2 axis of rotation |
| Square housing for ease of installation |
| Compatible with high efficiency Vega series AR111 LEDs |
| For interior lighting applications |
| |
| Specifications |
| Type |
Single fixture
(for 1 lamp) |
| Part No. |
CE-AR11I000WS5001 |
| External Dimensions |
180 mm x 180mm x 50mm(H) |
| Fixture Hole |
160mm x 160mm |
| Compatible With |
GL-AR111 series |
| Materials/ Color |
Iron + Powder Coating / White or Black |
| Net Weight |
165 g |
| Packing |
1 PCS / carton |
|
| |
 |
| |
 |
| |
| Specifications |
| Type |

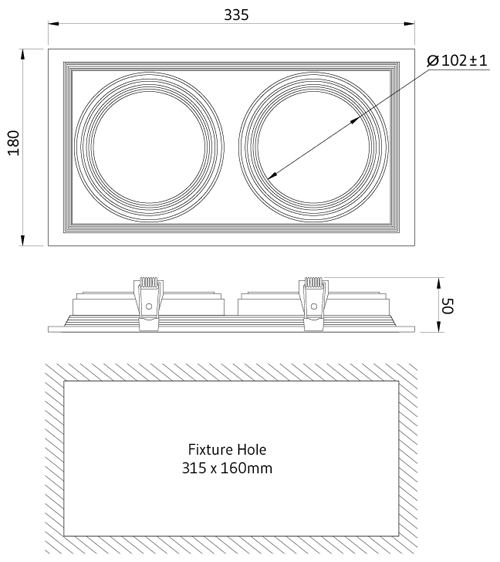

Double fixture
(for 2 lamps) |
| Part No. |
CE-AR11I000WS6001 |
| External Dimensions |
335 mm x 180mm x 50mm(H) |
| Fixture Hole |
315 mm x 160mm |
| Compatible With |
GL-AR111 series |
| Materials/ Color |
Iron + Powder Coating / White or Black |
| Net Weight |
290 g |
| Packing |
1 PCS / carton |
|
| |
 |
| |
 |
| |
| Specifications |
| Type |
Triple fixture
(for 3 lamps) |
| Part No. |
CE-AR11I000WS7001 |
| External Dimensions |
480 mm x 180mm x 50mm(H) |
| Fixture Hole |
460 mm x 160mm |
| Compatible With |
GL-AR111 series |
| Materials/ Color |
Iron + Powder Coating / White or Black |
| Net Weight |
430 g |
| Packing |
1 PCS / carton |
|
| |
 |
| |
 |
| |
 |
| |
| |
| |
