| Features |
 Slim, compact and fashionable design |
| Low Power Consumption |
| Elegant structure, designed to dissipate heat |
| 6x longer lifespan than fluorescent lamps: 30,000 hours |
| Available in 3 different color temperatures |
| Ideal replacement for tube lights and grid lights |
| Eco-friendly: No UV, no IR, & no mercury |
| Bundled driver with active PFC and OTP/OVP/SCP functions |
| Passed IEC 60598-1(2008 )、IEC 60695-2-11 850°C glow wire test (optional ) |
|
    |
| |
| Specifications |
| Type |
GL-PL0306-WW |
GL-PL0306-NW |
GL-PL0306-CW |
| Energy Used |
23 W |
| Rated Life |
30,000 Hours |
| Input Voltage |
100-240V AC |
| Power Factor (PF) |
0.9 at 120V AC, 0.7 at 240V AC |
| CCT(color) |
3000K |
4000K |
5700K |
| Luminous Flux |
1500 lm |
1600 lm |
1800 lm |
| System Efficacy |
65 lm/W |
70 lm/W |
78 lm/W |
| CRI (Minimum) |
80 |
80 |
80 |
| Beam Angle |
110° |
| Dimension |
295 x 595 x 13 mm |
| Operation Temperature |
-20°C ~ +40°C |
| IP Rating |
IP20 |
| Net Weight |
2 kg (with driver) |
| Package |
5 PCS / Carton |
| Bundled Driver |
GP-HS25P-24C |
|
* All specifications apply to the fixture assembly as a whole.
Due to the slight variations in the testing environment such as differences in ambient temperature or test equipment calibration, specifications are statistical reference values and may not match the actual technical parameters of an individual product. |
| |
| Outline / Dimension |
 |
| |

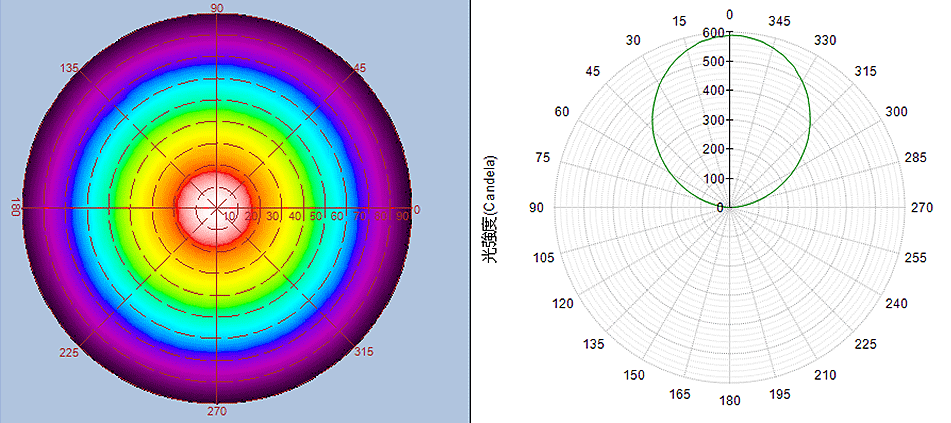

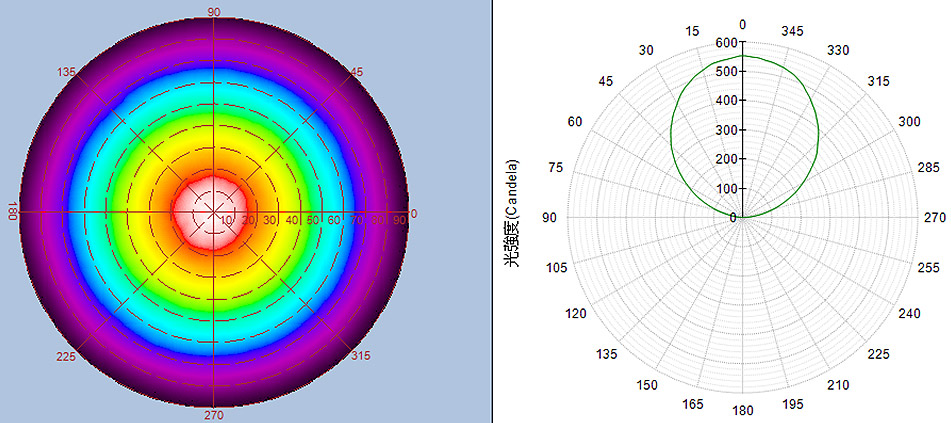

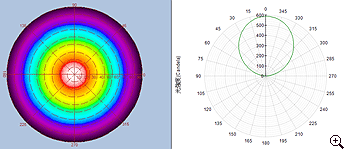

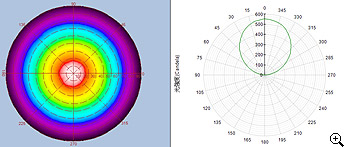

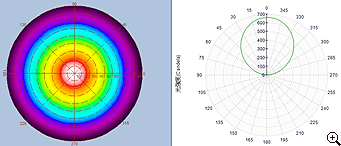

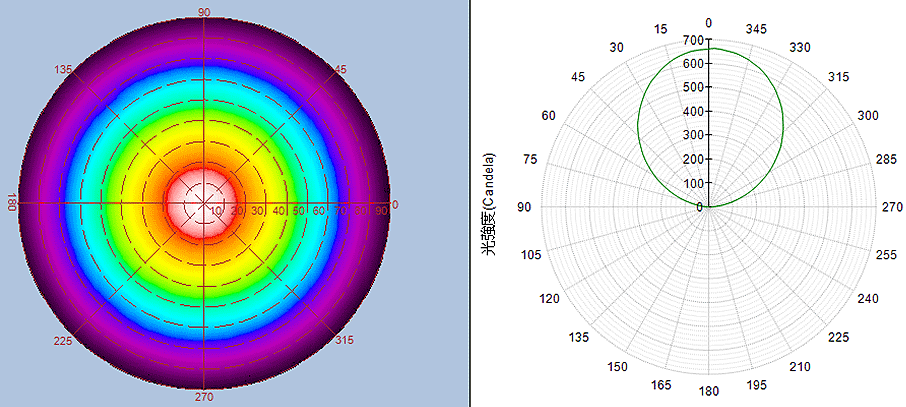

| Luminous Intensity Distribution Diagram |
 GL-PL0306-WW / CCT: 3000K |
|
| |
 |
| |
| GL-PL0306-NW / CCT: 4000K |
|
| |
 |
| |
| GL-PL0306-CW / CCT: 5700K |
|
| |
 |
| |
|
