| Features |

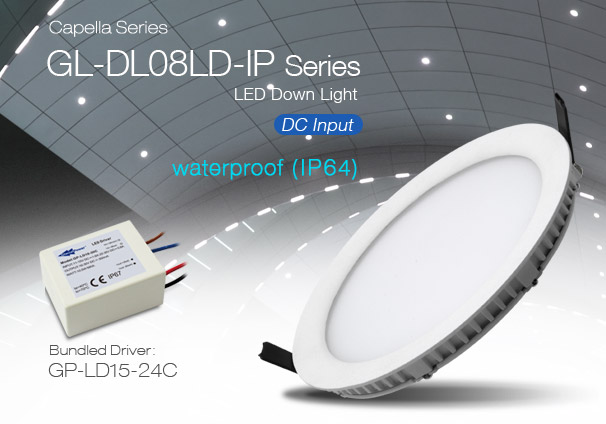

 For indoor or sheltered outdoor ceiling lighting applications
Waterproof (IP64)
All-in-one fixture
Light flow smoothly fades around the edges of the fixture to create a special atmospheric effect
DC input
Slim, compact and fashionable design
Bundled LED driver with Active PFC and OTP/SCP
Very low power consumption
No UV or IR radiation |
|
     |
| |
| Specifications |
| DL08LD-IP (DC input) |
| Type |
GL-DL08LD-IP-WW |
GL-DL08LD-IP-NW |
GL-DL08LD-IP-CW |
| Energy Used |
16.4 W |
| Rated Life |
30,000 Hours |
| Input Voltage |
11-15V DC / 22-30V DC |
| CCT (color) |
3000K |
4000K |
6000K |
| Luminous Flux |
1350 lm |
1400 lm |
1480 lm |
| System Efficacy |
82 lm/W |
85 lm/W |
90 lm/W |
| CRI (Minimum) |
80 |
80 |
80 |
| Beam Angle |
110° |
| Dimension |
Ø 208 x 20 mm |
| IP Rating |
IP64 |
| Operation Temperature |
-20°C ~ +40°C |
| Bundled Driver |
GP-LD15-24C (Driver Output: Constant Current 700mA, 25V) |
| Net Weight |
600 g (with driver) |
| Package |
10 Boxes / Carton |
| Fixture Hole |
Ф 200 mm |
|
* All specifications apply to the fixture assembly as a whole.
Due to the slight variations in the testing environment such as differences in ambient temperature or test equipment calibration, specifications are statistical reference values and may not match the actual technical parameters of an individual product. |
| |
| Outline / Dimension |
 |
| |
 |
| |
| |
| Luminous Intensity Distribution Diagram |
 GL-DL08-IP-WW / CCT : 3000K |
|
| |
 |
| |
| |
| GL-DL08-IP-NW / CCT : 4000K |
|
| |
 |
| |
| |
| GL-DL08-IP-CW / CCT : 6000K |
|
| |
 |
|
| |
