Intel Series/ LGA1156   Polaris 1110 (1U Active)

Model Name Polaris 1110 (1U Active)
CPU Compatibility Intel LGA1156
Weight (g) 400
Material Copper
Dimension (mm) 88(L) × 88(W) × 28(H)
Fan Speed (rpm) PWM 2000~5000
Bearing type Two ball bearing
Fan Dimension (mm) 75 × 75 × 15
Air Flow Rate (CFM) 10.75
Voltage (V) DC12V
Power Consumption (Watt) 5.04 (MAX.5.28)
Operating Voltage (Volt) 10.8V~13.2 V DC
Noise (dBA) 49 (MAX.52)

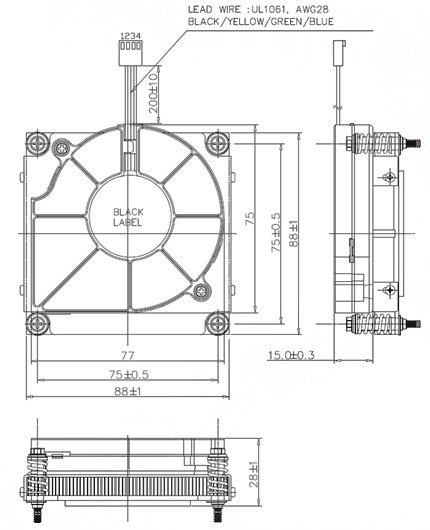

    dimension drawing
