Intel LGA1150/1155/1156

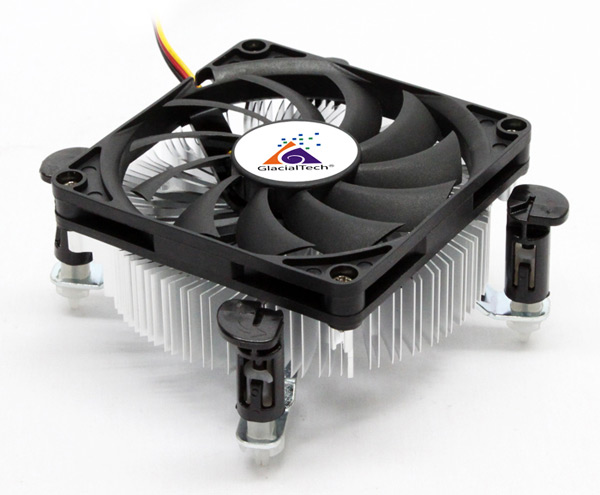

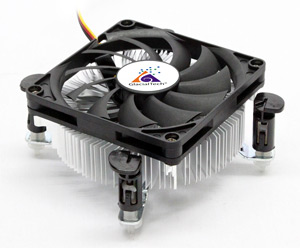

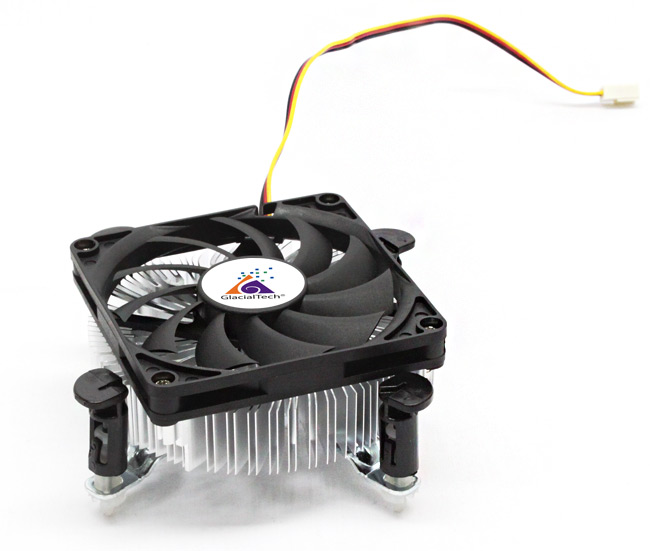

Igloo i630 Series




Highlighted features
High Quality Aluminum Alloy
High Fin Density
PWM Version: Fan speed increase with the increase of CPU loading
Constant Fan Speed Version: The best price-performance
Weight / noise performance
Easy to install

Specifications
Model Igloo i630 Light (E)/(B) Igloo i630 (E)/(B) Igloo i630 PWM (E)/(B)
Socket Type Intel LGA1150/1155/1156
CPU Compatibility LGA1150:
4th Generation Intel® Core™ i7 Processors (up to 65W)
4th Generation Intel® Core™ i5 Processors (up to 65W)
LGA1155:
3rd Generation Intel® Core™ i7 Processors (up to 65W)
3rd Generation Intel® Core™ i5 Processors (up to 65W)
3rd Generation Intel® Core™ i3 Processors (up to 55W)
2nd Generation Intel® Core™ i7 Processors (up to 65W)
2nd Generation Intel® Core™ i5 Processors (up to 65W)
2nd Generation Intel® Core™ i3 Processors (up to 65W)
Dimension (mm) Ø 95×36(H)
Weight (grams) 245
Fan Bearing Type Entering Bearing / Two Ball Bearing
Rated Voltage DC 12 V
Dimension (mm) 80 x 80 x 10
MTBF (hour/25°C) 30,000 hours / 50,000 hours
Speed(RPM) 2600 3200 PWM 800~ 3600
Airflow (CFM) 17.6 24.6 Max. 27.5
Noise (dBA) 25.8 28.9 34.2 (max.)
Safety UL, CE
Interface Material High Efficiency Thermal Compound
 It depends on the air flow inside the PC system.
