| Intel LGA 1700 |
|
Igloo S710CU PWM(E) |
|
|
|
| |
|
|
| Model Name |
Igloo S710CU PWM(E) |
| Socket Type |
Intel LGA1700 |
| CPU Compatibility |
Intel® Core™ i3, i5 (12/13 gen, up to 45W) |
| Dimension (mm) |
84.5×84.5×18 |
| Weight (gram) |
100 |
| Fan |
Bearing Type |
Hydro-Dynamic |
| Dimension (mm) |
Ø80×10 |
| Speed (rpm) |
PWM 400~2,800 |
| Airflow (CFM) |
26.2 (max.) |
| Noise (dBA) |
31.6 (max) |
| Rated voltage (VDC) |
12 |
| MTBF (hours) |
40,000 |
| Safety |
CE |
| Material-Heat sink |

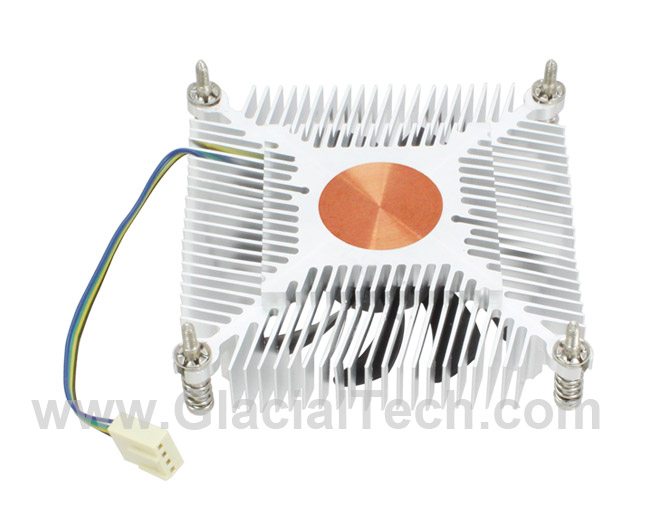

Aluminum 6063T5+Copper |
| Material-Thermal compound |
High Efficiency Thermal Compounds |
|
| |
| |
| |
| |
| |
|
|
|
| |
 |
| |
| |
|
|
