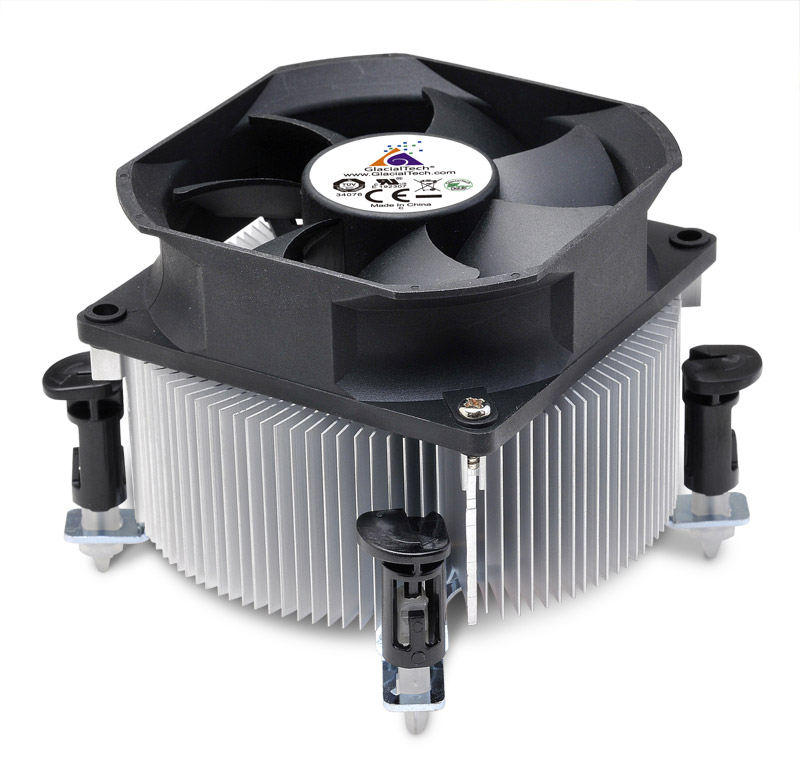

IIntel LGA1150/1155/1156   Igloo 1100 Series



Specifications
Model Igloo 1100
Silent (E)/(2B)
Igloo 1100
Light (E)/(2B)
Igloo 1100
(E)/(2B)
Igloo 1100
PWM (E)/(2B)
Socket Type Intel LGA1150/1155/1156
CPU Compatibility LGA1150:
4th Generation Intel® Core™ i7 Processors (up to 84W)
4th Generation Intel® Core™ i5 Processors (up to 84W)
LGA1155:
3rd Generation Intel® Core™ i7 Processors (up to 77W)
3rd Generation Intel® Core™ i5 Processors (up to 77W)
3rd Generation Intel® Core™ i3 Processors (up to 55W)
2nd Generation Intel® Core™ i7 Processors (up to 95W)
2nd Generation Intel® Core™ i5 Processors (up to 95W)
2nd Generation Intel® Core™ i3 Processors (up to 65W)
Dimension (mm) Ф 95×67
Weight (grams) 380
Fan Bearing Type Ultra Entering Bearing / Two Ball Bearing
Rated Voltage DC 12V
Dimension (mm) 80 x 80 x 25
MTBF(hour/25°C) 50,000 hours / 25°C
Speed(RPM) 2000 2600 3200 PWM 800~3600
Airflow (CFM) 26.0 35.5 44.1 50.082 (max.)
Noise (dBA) 20 25 32 15~38
Safety UL, CE
Interface Material High Efficiency Thermal Compound
