Igloo 5620 Series



Features
 Two D6 sinter heat-pipes
 9 cm high efficiency bullet fan

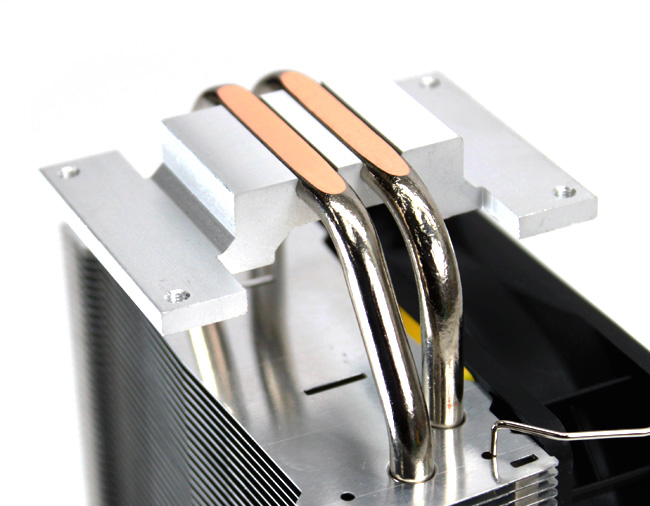

 Heat-pipes contact directly
 Multi-platform

Specifications
Model Igloo 5620 Silent Igloo 5620 PWM
Socket Type Intel LGA1150/1155/1156/2011/1366/775
AMD FM1, FM2, AM2, AM2+, AM3, AM3+
CPU Compatibility Intel LGA1150:
4th Generation Intel® Core™ i7 Processors (up to 84W)
4th Generation Intel® Core™ i5 Processors (up to 84W)
Intel LGA1155:
3rd Generation Intel® Core™ i7 Processors (up to 77W)
3rd Generation Intel® Core™ i5 Processors (up to 77W)
3rd Generation Intel® Core™ i3 Processors (up to 55W)
2nd Generation Intel® Core™ i7 Processors (up to 95W)
2nd Generation Intel® Core™ i5 Processors (up to 95W)
2nd Generation Intel® Core™ i3 Processors (up to 65W)
Intel LGA2011:
Intel® Core™ i7-3960X Processor Extreme Edition (130W)
Intel LGA1366:
Intel® Core™ i7 Processor (Up to 130 watts)
Intel LGA775:
up tp 105W CPU

AMD:
FM1/FM2 A Series CPU (100W)
A4-3400, A6-3670K, A8-3870K (100W)
Phenom™ II X2, X3, X4, and X6 Processors (140W)
Phenom™ X3, X4 Cores Processors (125W)
Athlon™ II X2, X3, X4 Processor (95W)
Bulldozer FX Series Processor (125W)

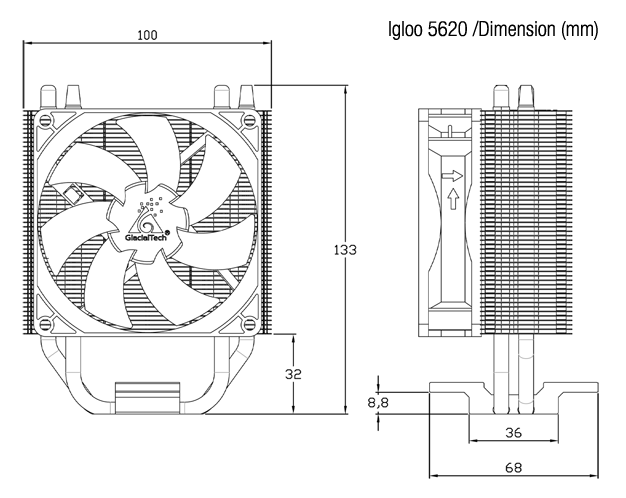

Dimension (mm) 100 (W)×62 (L)×135(H)
Weight (grams) 320
Fan Bearing Type Ultra Entering Bearing
Rated Voltage DC 12V
MTBF (hour/25°C ) 50,000 hours / 25°C
Dimension (mm) 92 x 92 x 25
Speed(RPM) 1200 PWM 800(±300 RPM)~2300(±10%)
Airflow (CFM) 34 43 (max.)
Noise (dBA) 20 30 (max.)
Safety UL, CE
Interface Material High Efficiency Thermal Compound
